首页产品工业除尘器高负压中央吸尘系统

工业除尘器

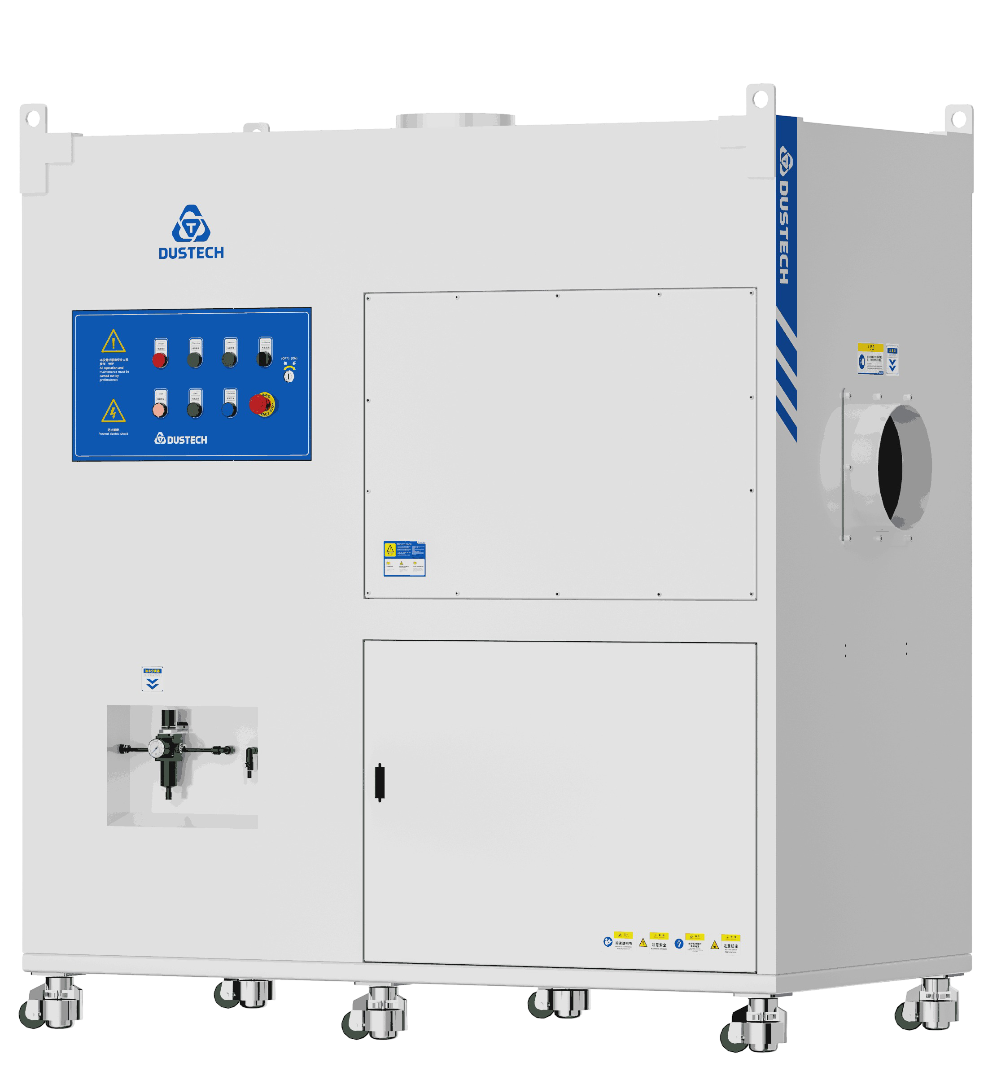

高负压中央吸尘系统

适用于锂电池车间多工位清洁和PCB加工设备除尘，包括PCB切口、开槽、卷绕、多轴钻孔、板研磨、倒角、切割和各类型车间中央清理清扫清洁。

可选配
整机不锈钢结构
风速传感器
带感应快接墙阀吸尘口
温度传感器
活性炭过滤器
恒压变频控制系统
附加H13/H14过滤器
粉尘浓度检测器
变频器
多色信号灯

获取报价产品手册

优势与特点

性能特点

多吸尘点同步作业

支持多个吸尘点同时进行吸尘操作。
自研高负压风机系统

自研高负压风机系统，单台最大功率可达250kw。
简便运行维护设计

运行操作与维护简单便捷。
多样化滤材选择

多种滤筒材质可根据实际工况选择。
自动反吹清灰系统

全系标配自动反吹清灰系统。

01 / 05

规格

技术参数

型号	DT-PJ-75-HP	DT-PJ-110-HP	DT-PJ-125-HP	DT-PJ-150-HP	DT-PJ-185-HP	DT-PJ-200-HP	DT-PJ-250-HP
电压(V/Hz)	380/50
功率(kW)	7.5	11.0	12.5	15	18.5	20	25
额定电流(A)	16.7	28	30	35	37	40	52
最大风量(m³/h)	700	900	1050	1150	1370	1940	1940
最大负压(kPa)	27	28	28	33	31	22	31
过滤面积(m²)	22				44
过滤效率	>99%
清灰方式	脉冲反吹式
集尘容器容量(L)	50				80
噪音dB(A)	72±2	74±2	74±2	74±2	77±2	77±2	80±2
进气口直径(mm)	Ø75/3	Ø100/4	Ø100/4	Ø100/4	Ø150/6	Ø150/6	Ø150/6
尺寸[L×W×H](mm)	13509001750				17009001850
重量(kg)	430	470	500	530	600	625	650

Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
