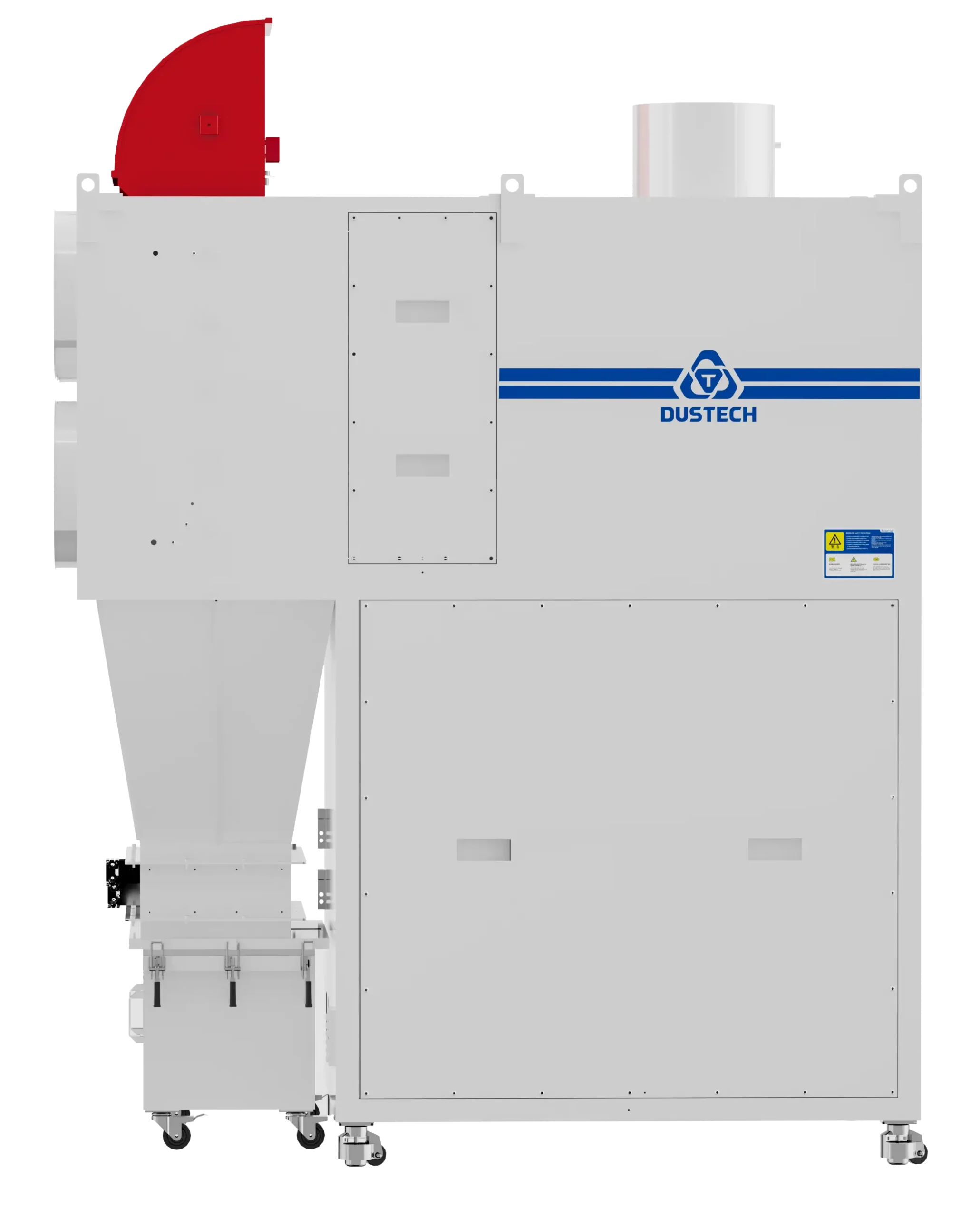

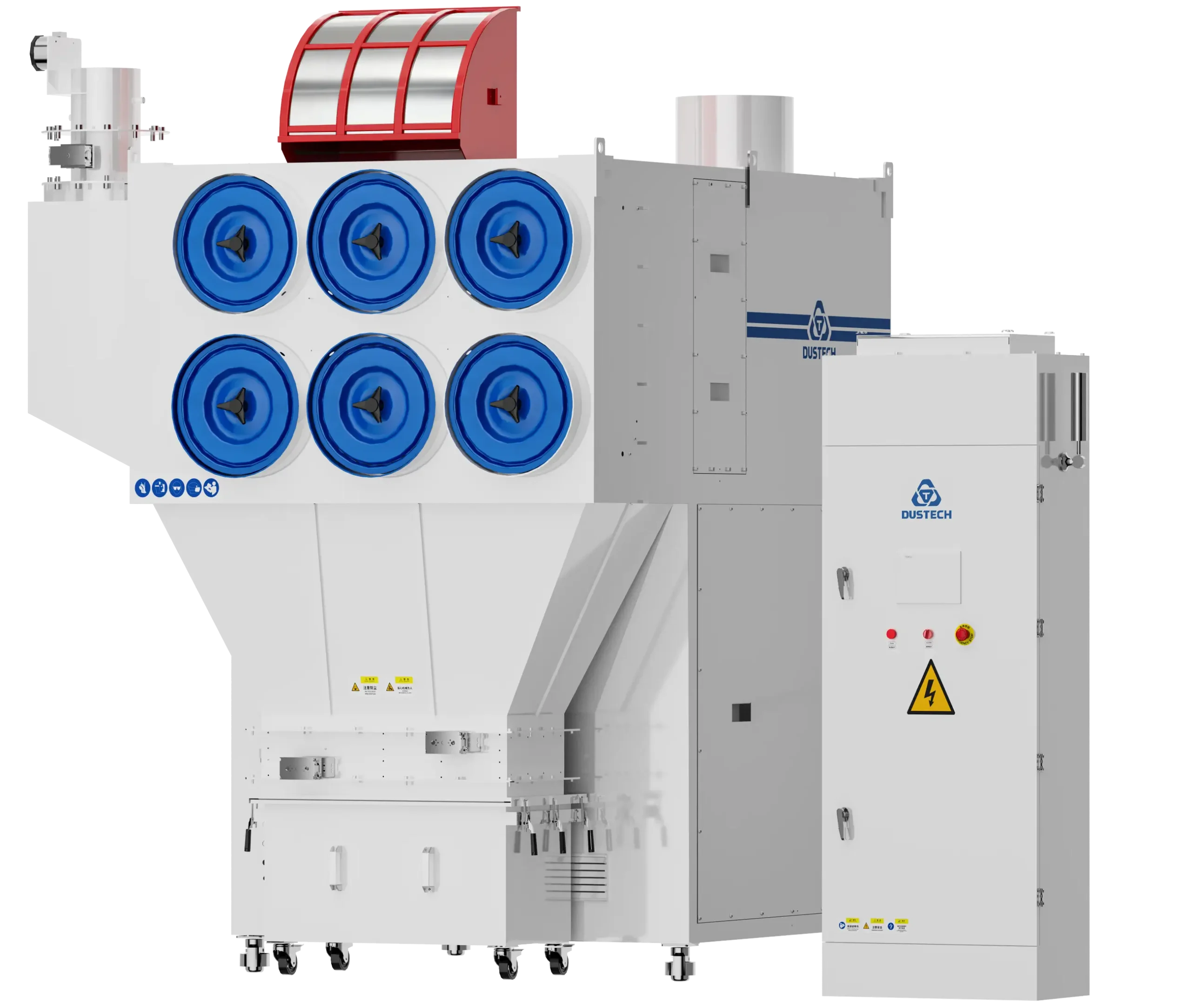

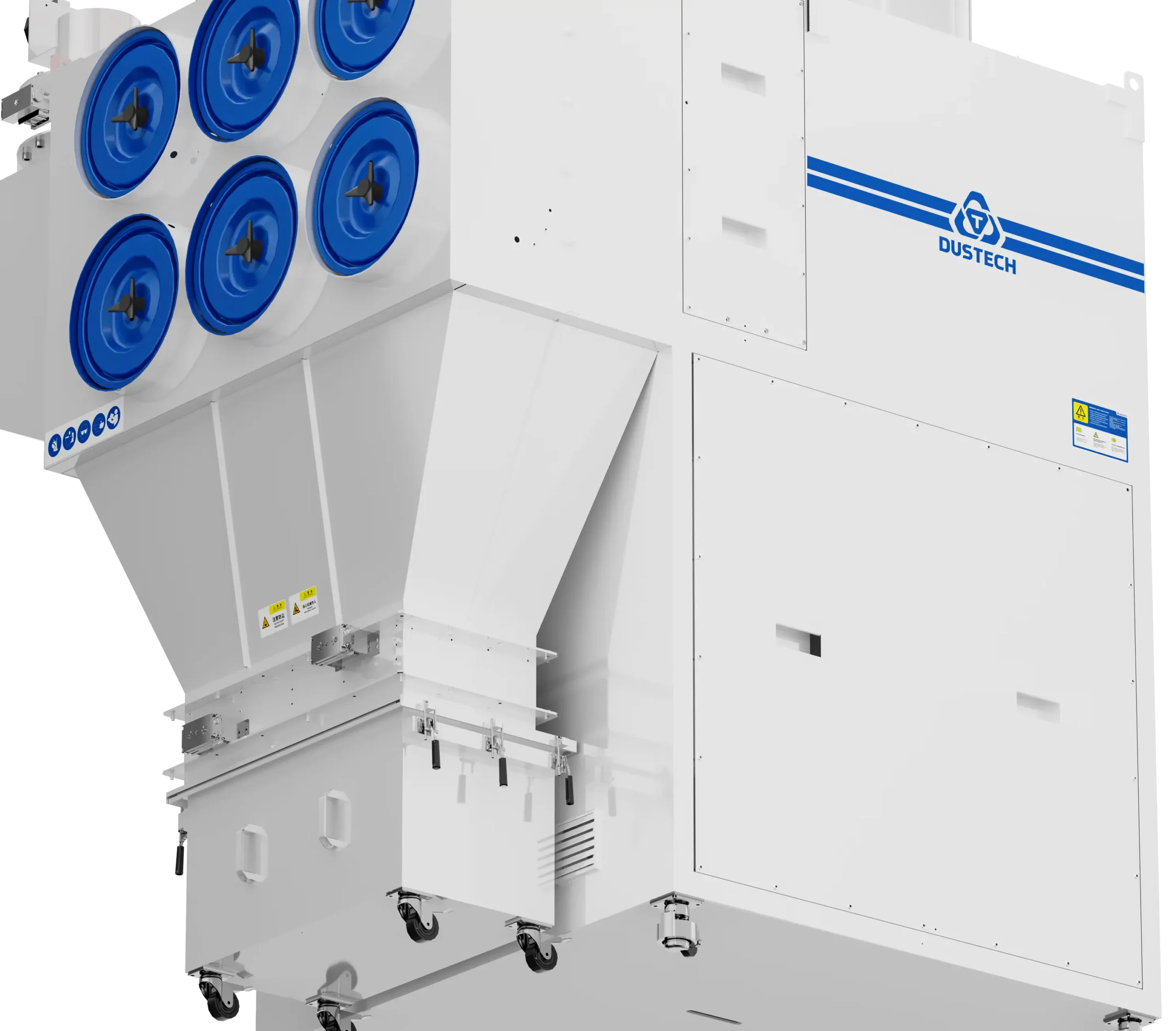

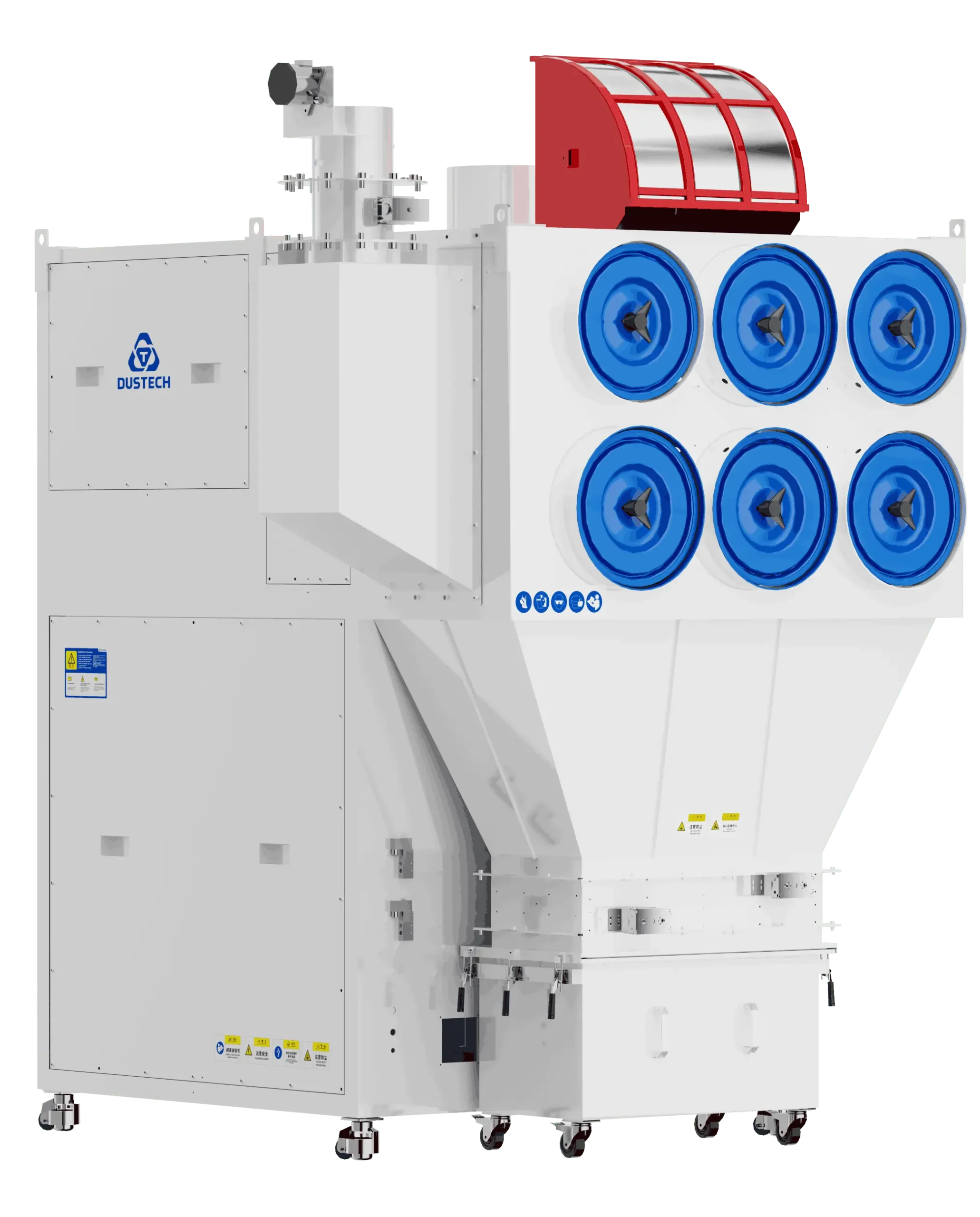

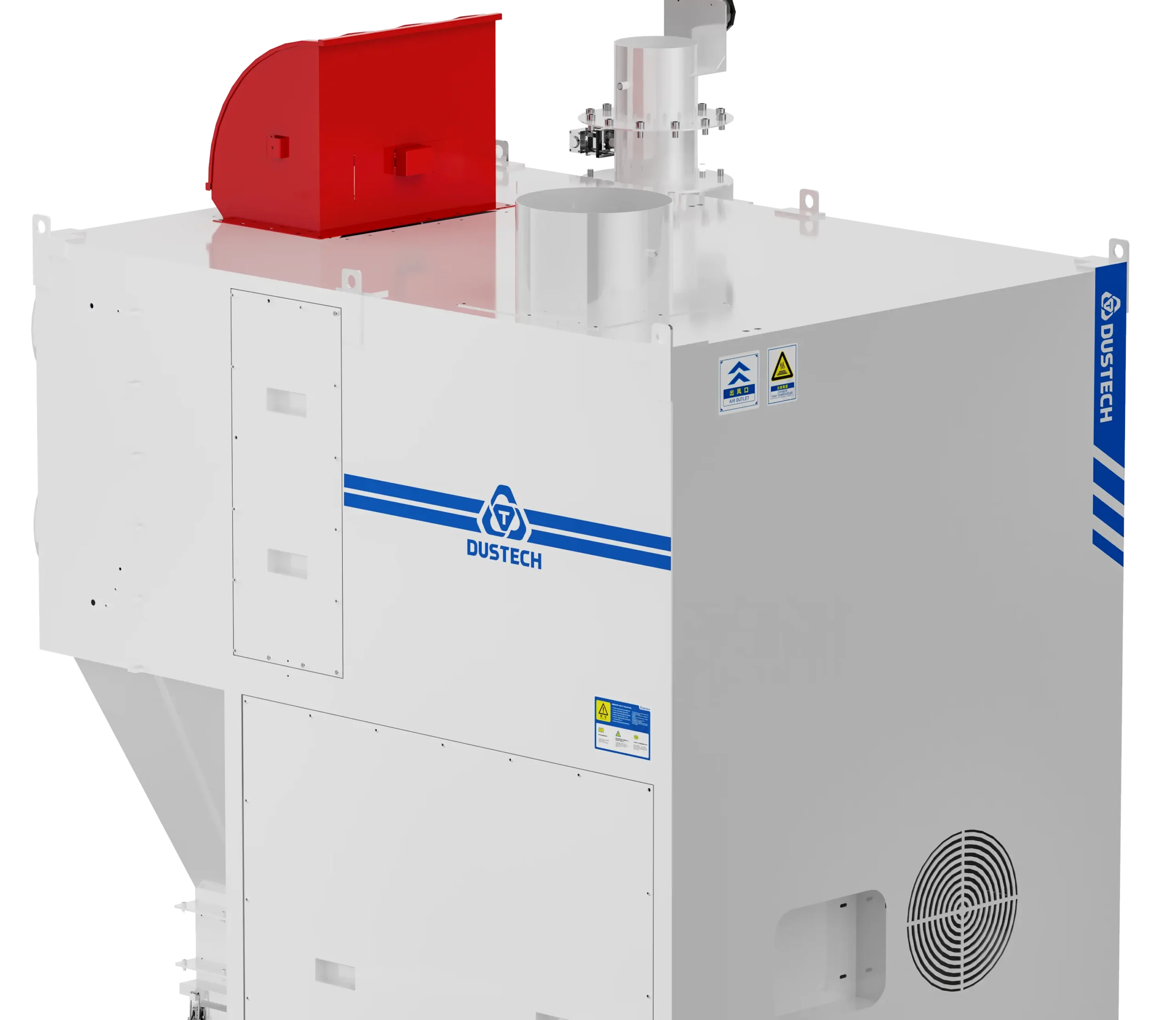

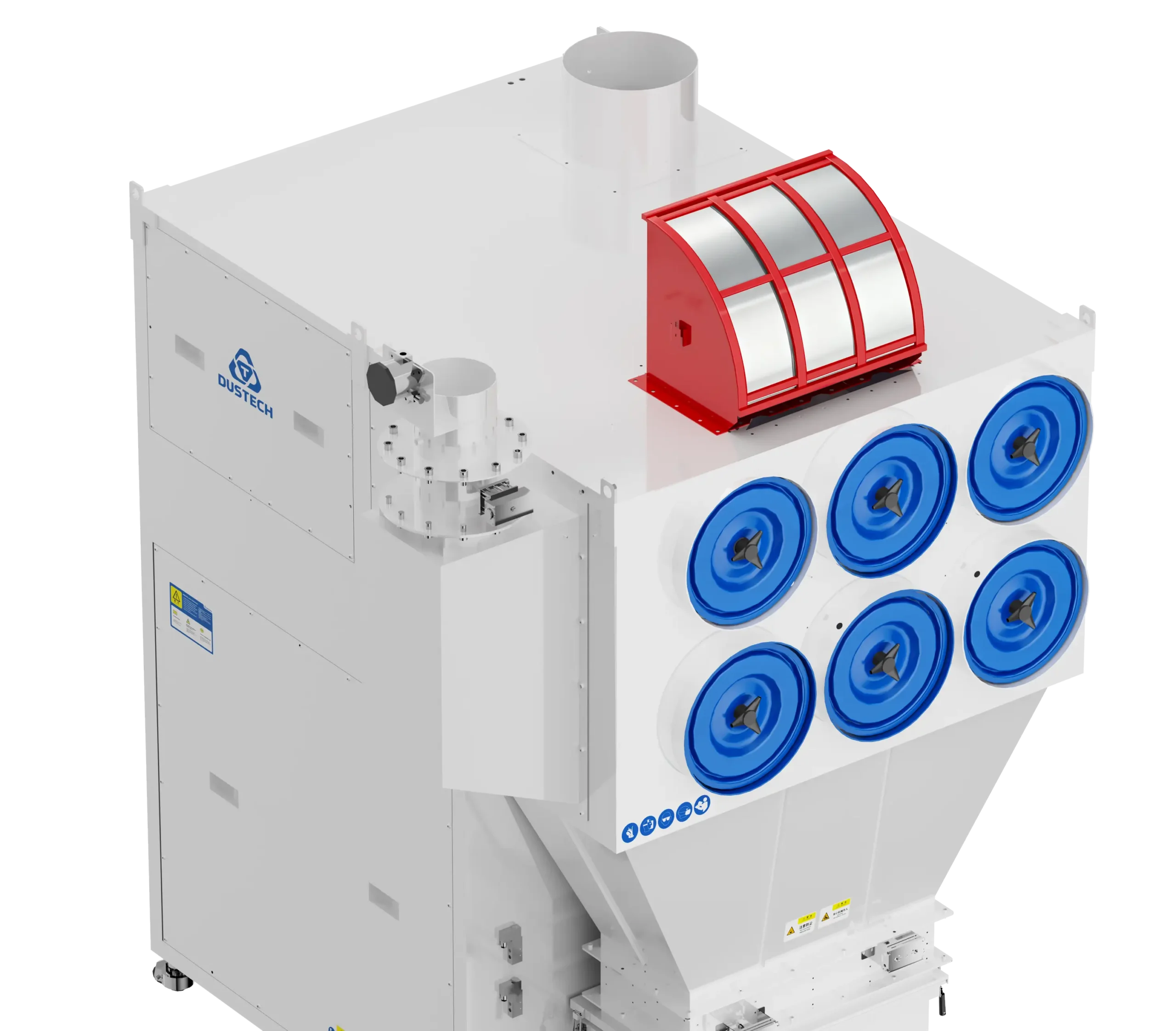

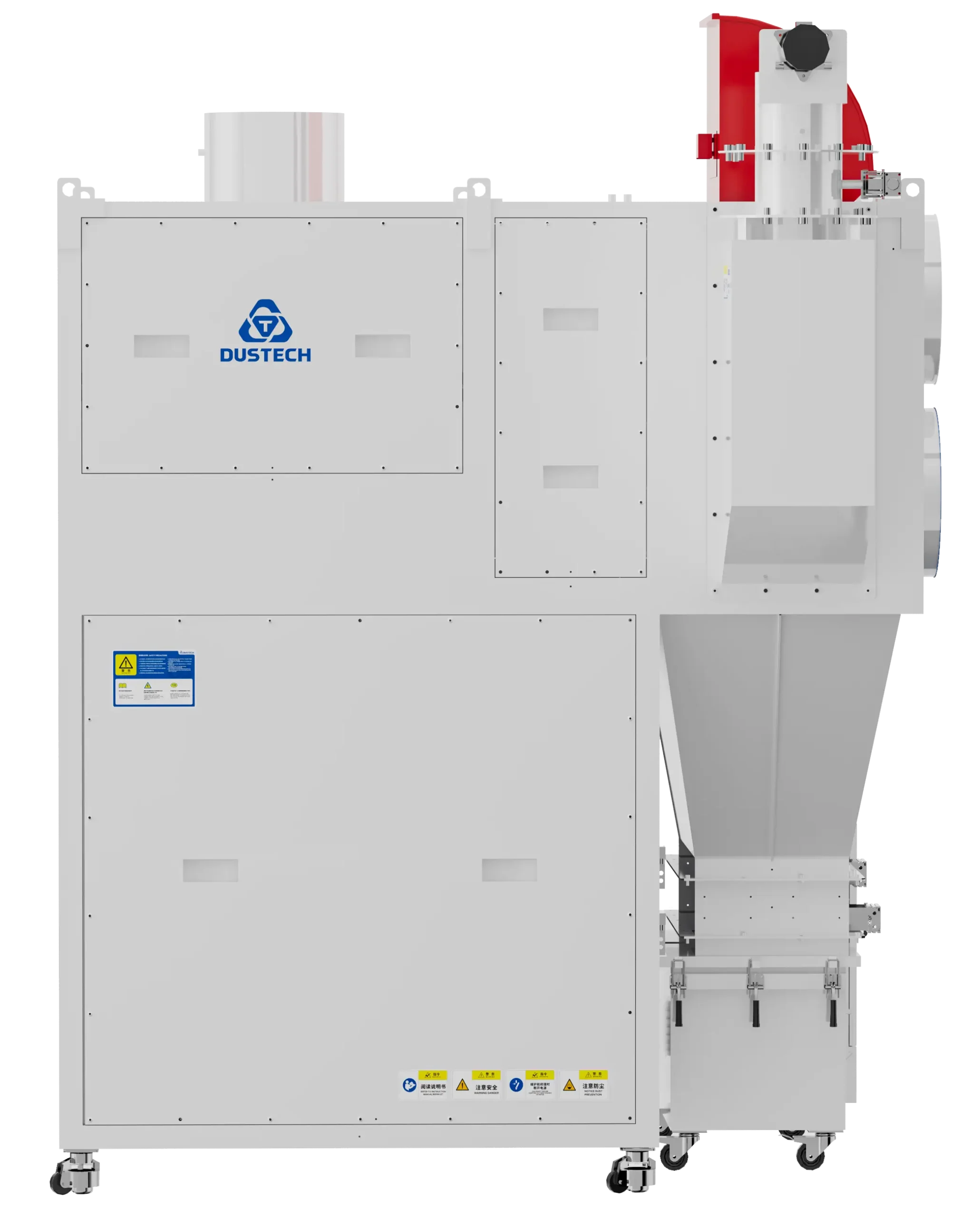

中压防爆集尘器

Dust Removal is Crucial for Manufacturing

Ex his quidam aeternitati se commendari posse per statuas aestimantes eas ardenter adfectant quasi plus praemii de figmentis aereis sensu carentibus adepturi, quam ex conscientia honeste recteque factorum, easque auro curant inbracteari, quod Acilio Glabrioni delatum est primo, cum consiliis armisque regem superasset Antiochum. quam autem sit pulchrum exigua haec spernentem et minima ad ascensus verae gloriae tendere longos et arduos, ut memorat vates Ascraeus, Censorius Cato monstravit. qui interrogatus quam ob rem inter multos... statuam non haberet malo inquit ambigere bonos quam ob rem id non meruerim, quam quod est gravius cur inpetraverim mussitare.

Intrinsically Safe Design

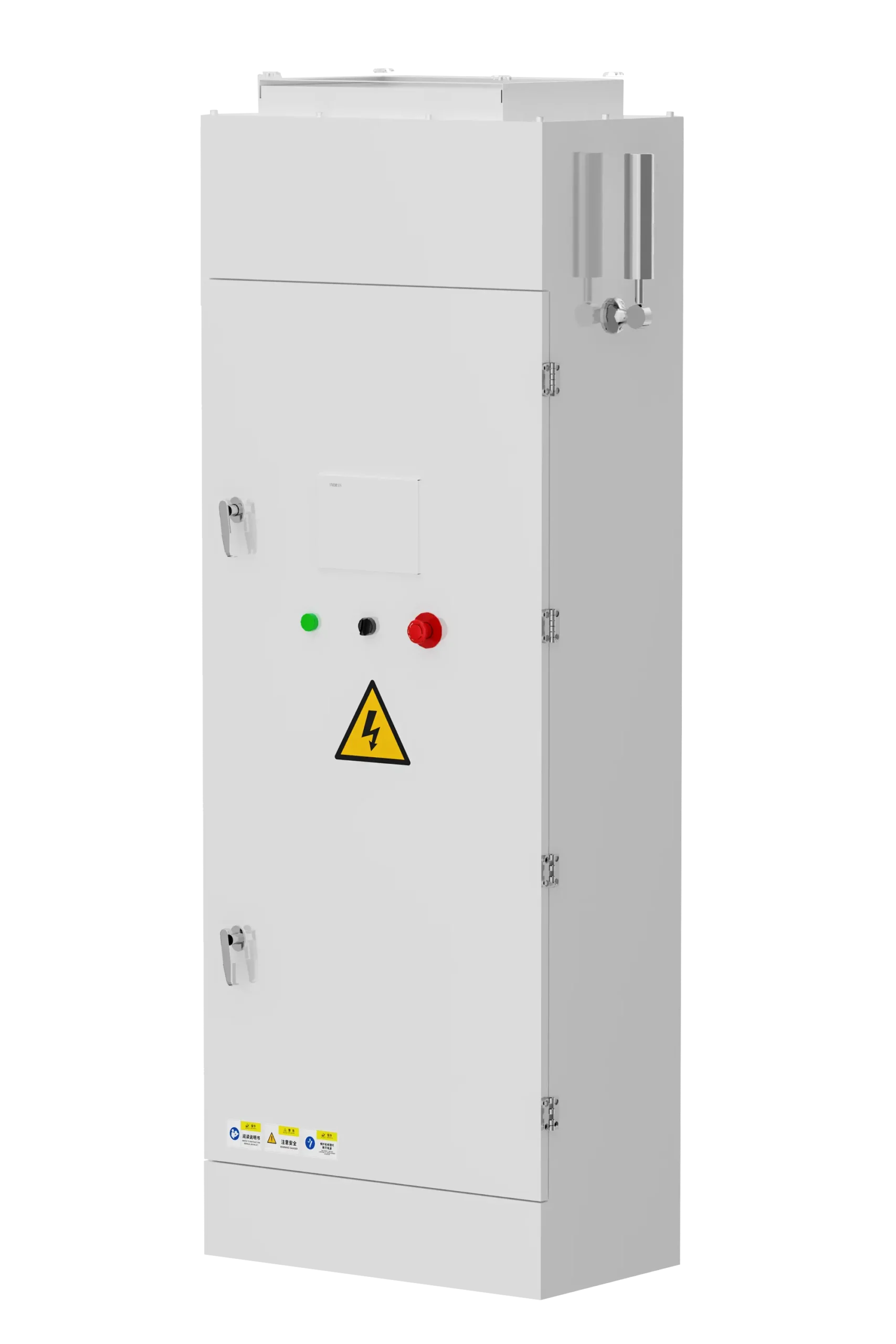

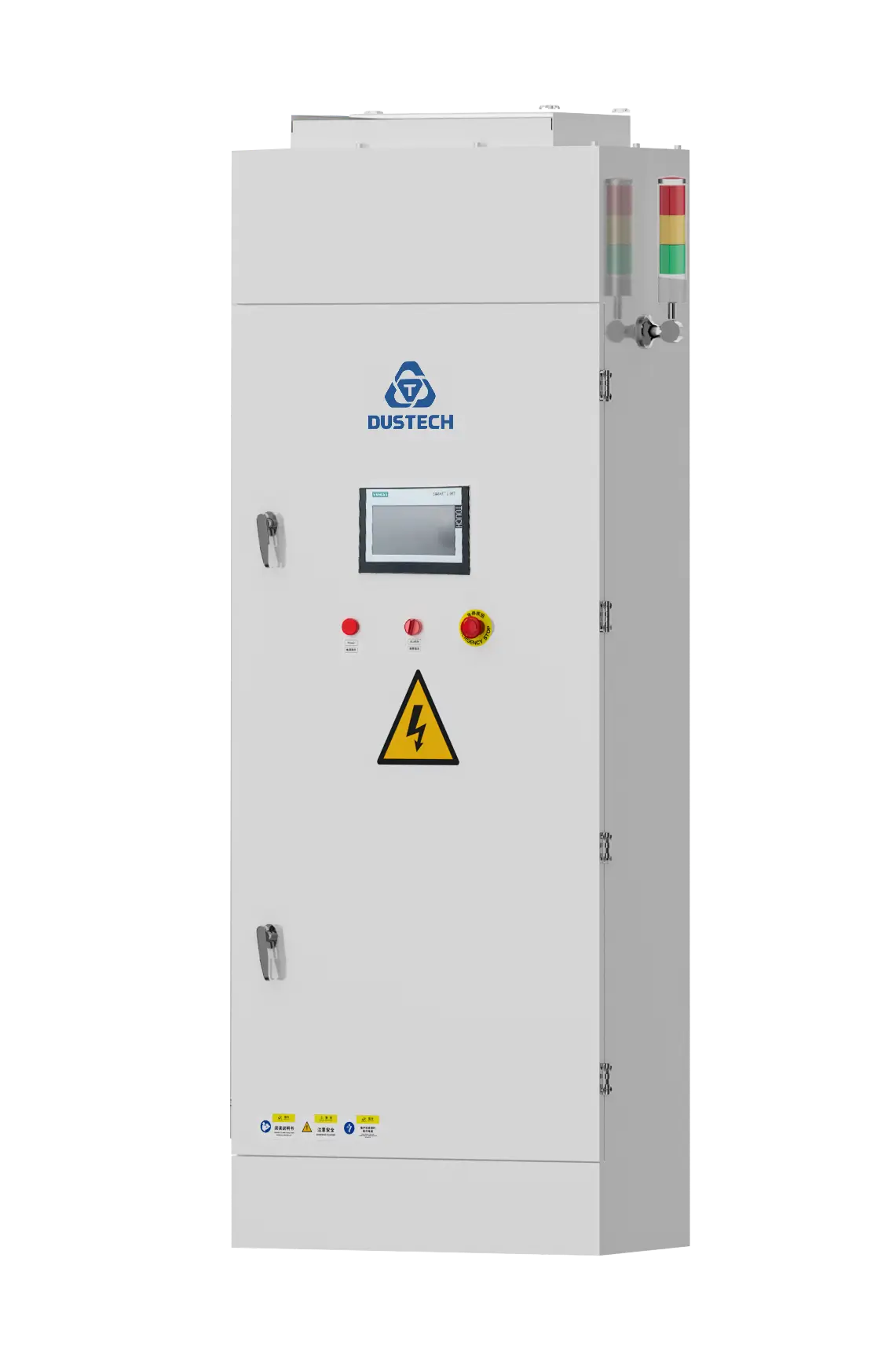

The entire system (equipment, motor, and control cabinet) is explosion-proof, eliminating ignition sources at the root.
Optimization for Conductive Dust

Specialized filter media and anti-static measures prevent static electricity accumulation and equipment failure caused by conductive dust.
Compatibility with Dry Environments

The solution considers compatibility with low-humidity dry room environments to avoid compromising battery production quality.

Advantages

Pioneer in Dust Collection & Explosion Protection Solutions

Paphius quin etiam et Cornelius senatores, ambo venenorum artibus pravis se polluisse confessi, eodem pronuntiante

24/7 Online Support

We offer 24/7 online support to assist with all your Power Supply needs.

Reduce High Equipment
Failure Rate

Conductive dust intrusion into precision equipment causes frequent breakdowns and downtime

Environmental Protection And Compliance Pressure

Strict environmental protection regulations and safety production access requirements.

型号	DT-EX-5.5-MP	DT-EX-7.5-MP	DT-EX-11-MP	DT-EX-15-MP	DT-EX-22-MP	DT-EX-30-MP
电压(V/Hz)	380/50
功率(kW)	5.5	7.5	11	15	22	30
最大风量(m³/h)	3656	4116	4500	5400	6500	8000
过滤效率	>99%
过滤面积(m²)	44	44	44	44	88	176
清灰方式	脉冲反吹式
进风口径(mm)	∅200	∅200	∅250	∅250	∅250	∅273
尺寸[L×W×H] (mm)	245012602700	245012602700	235014002250	245017002300	255017002900	255016503680

Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
