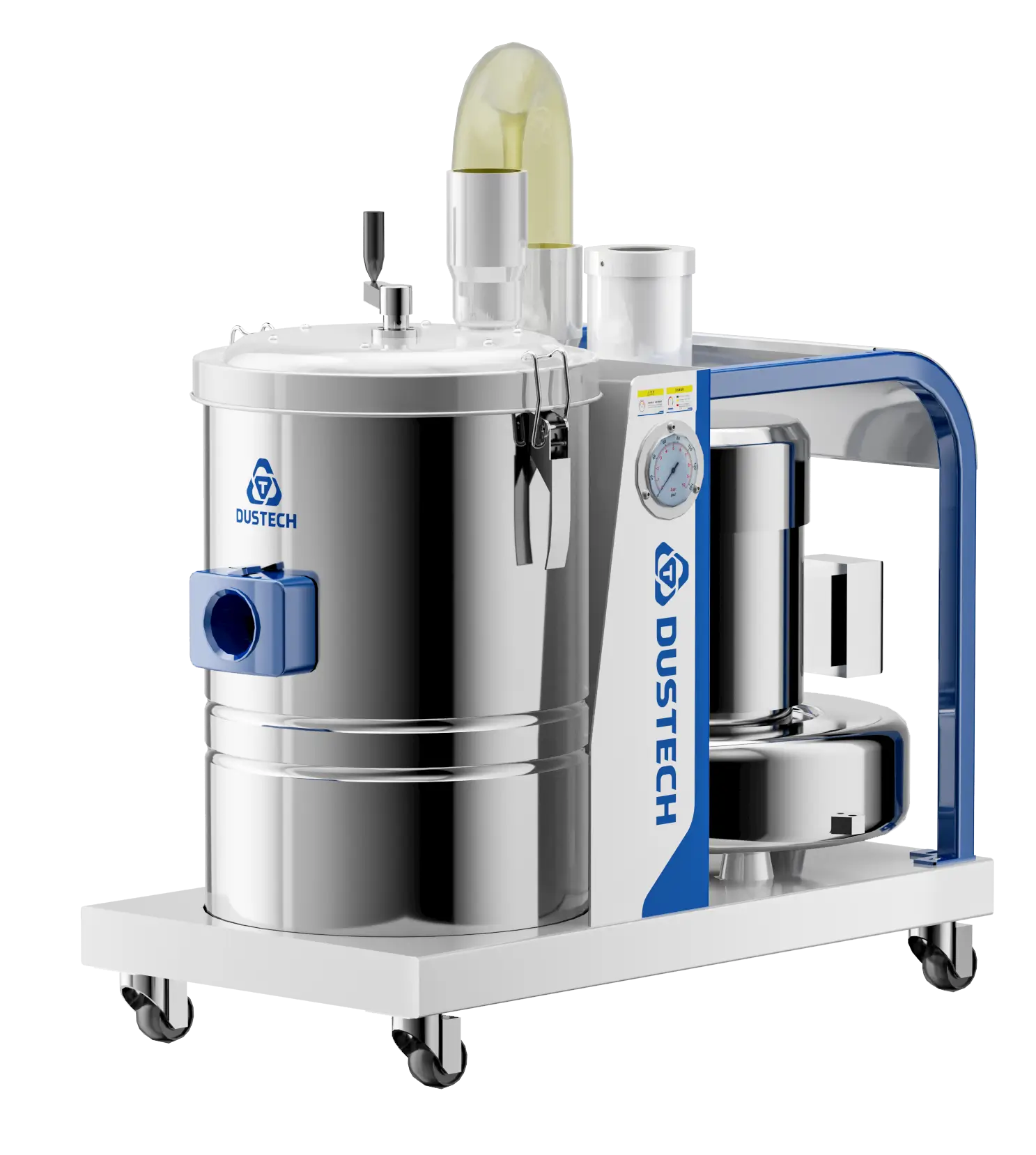

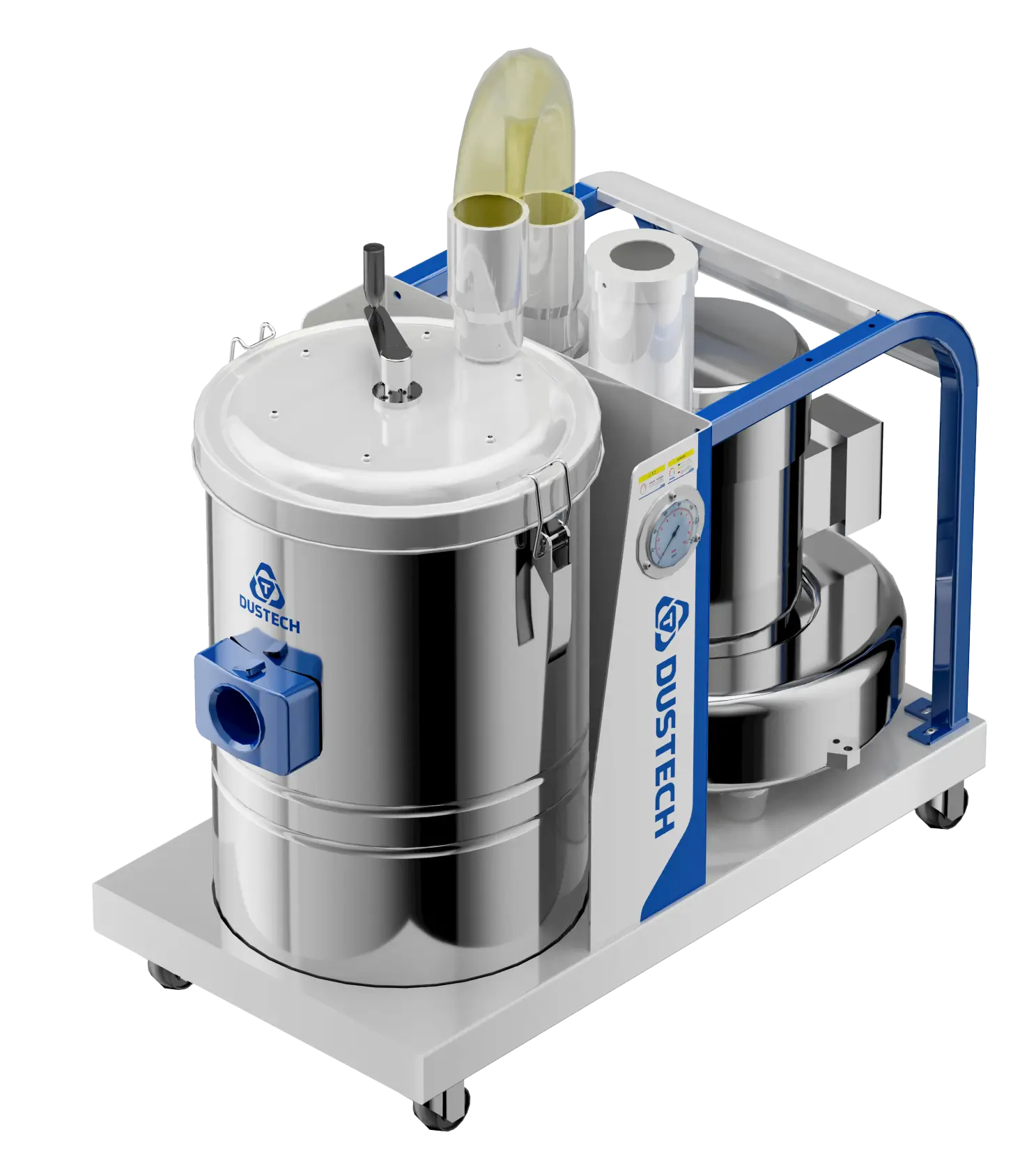

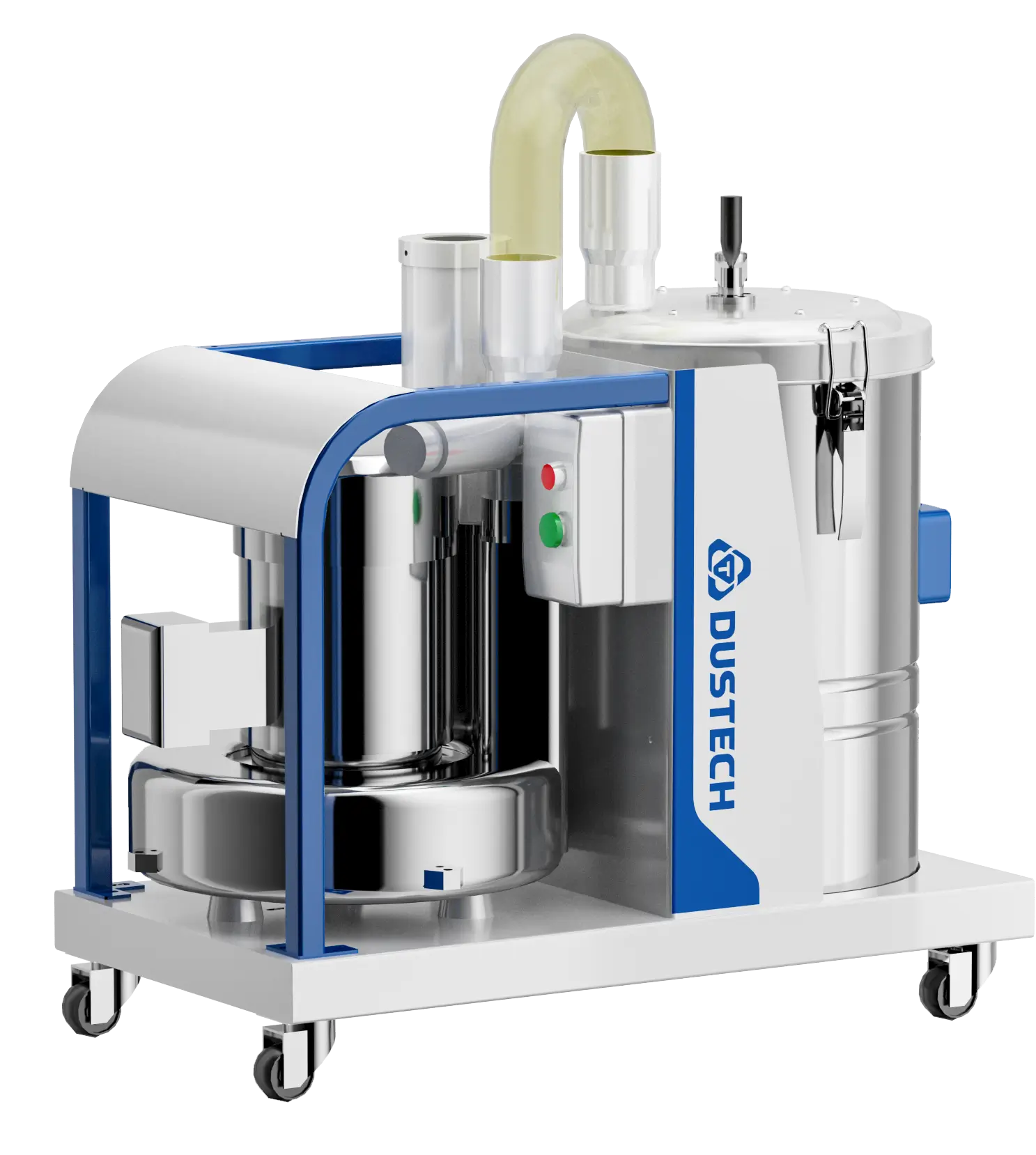

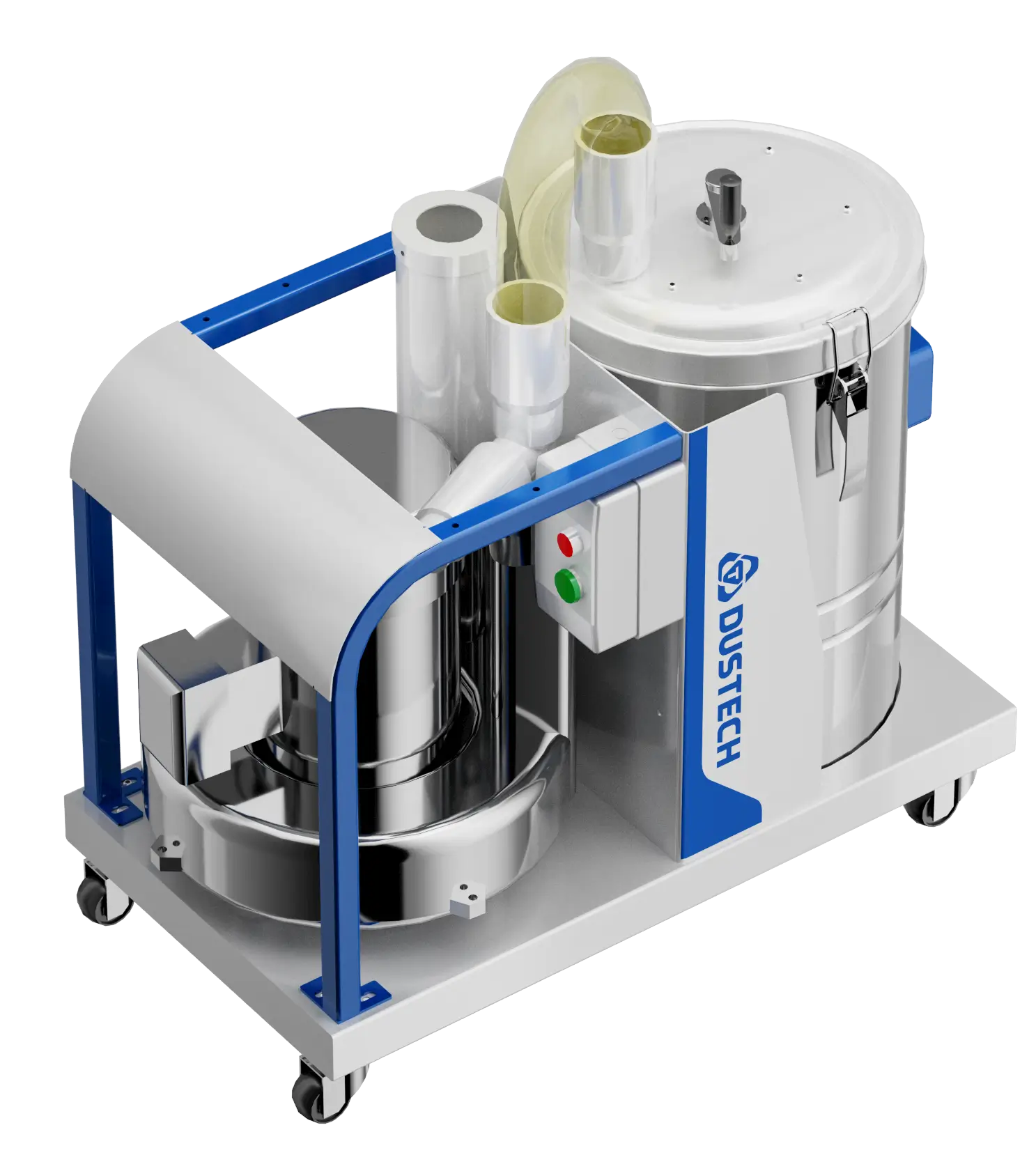

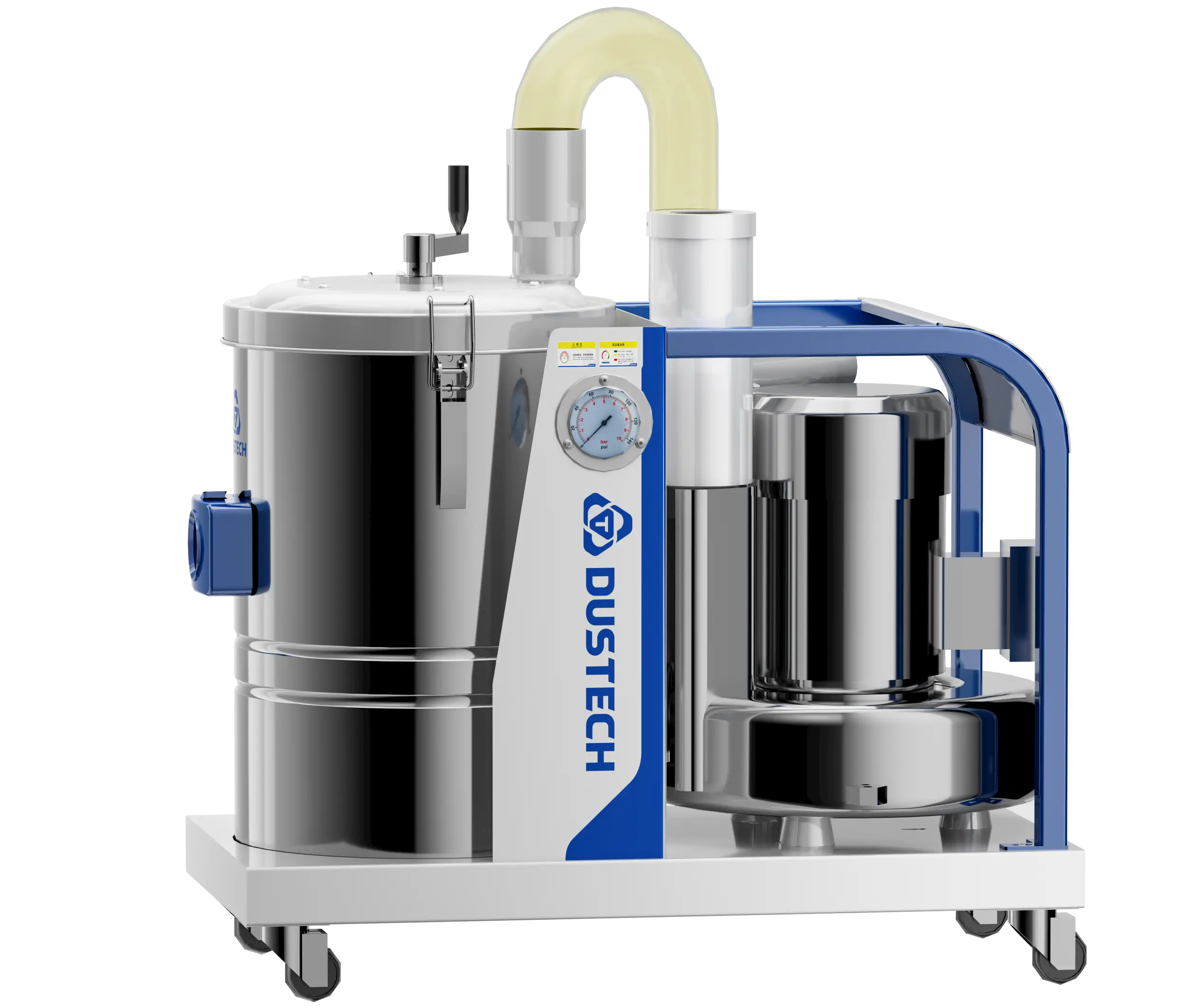

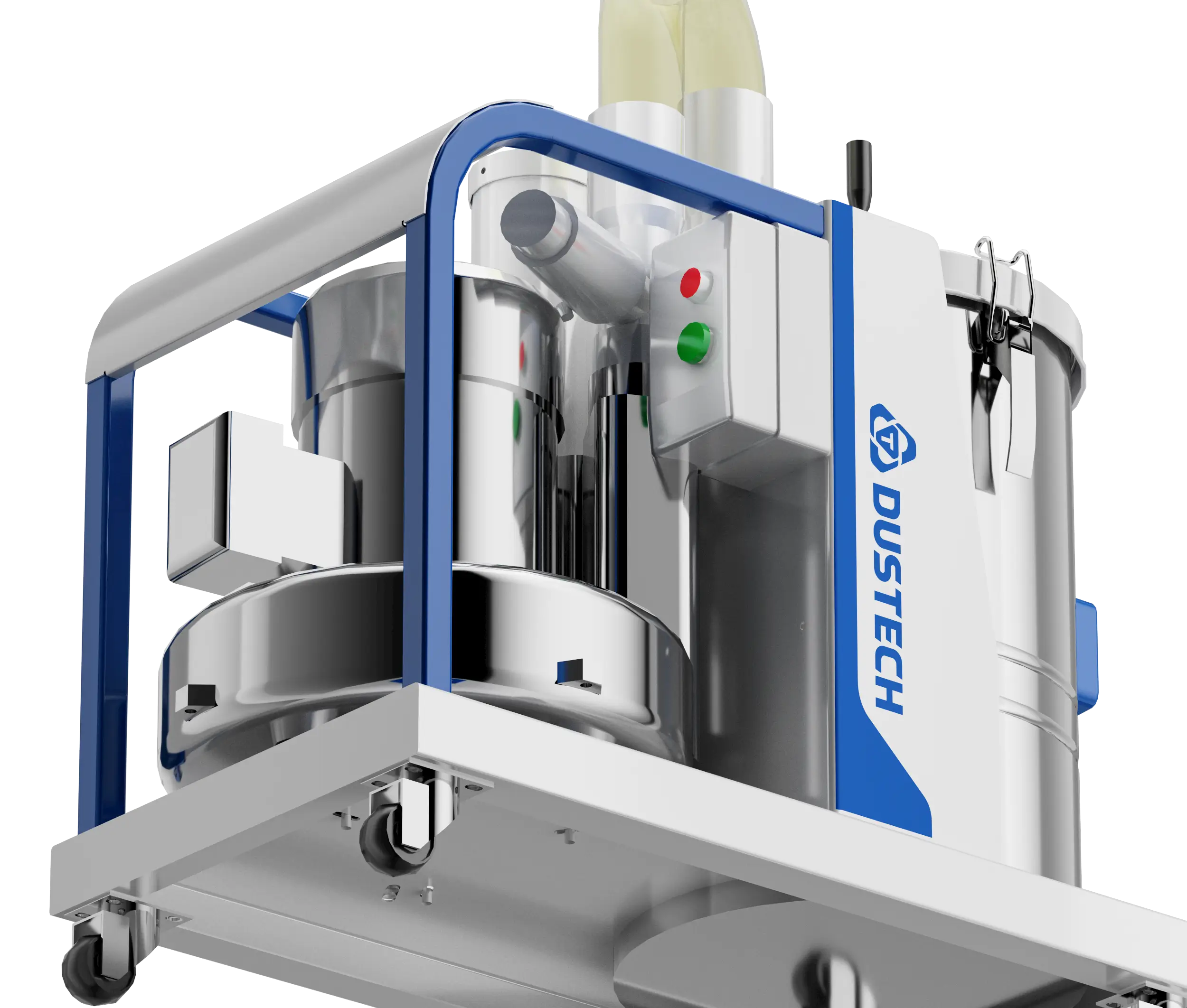

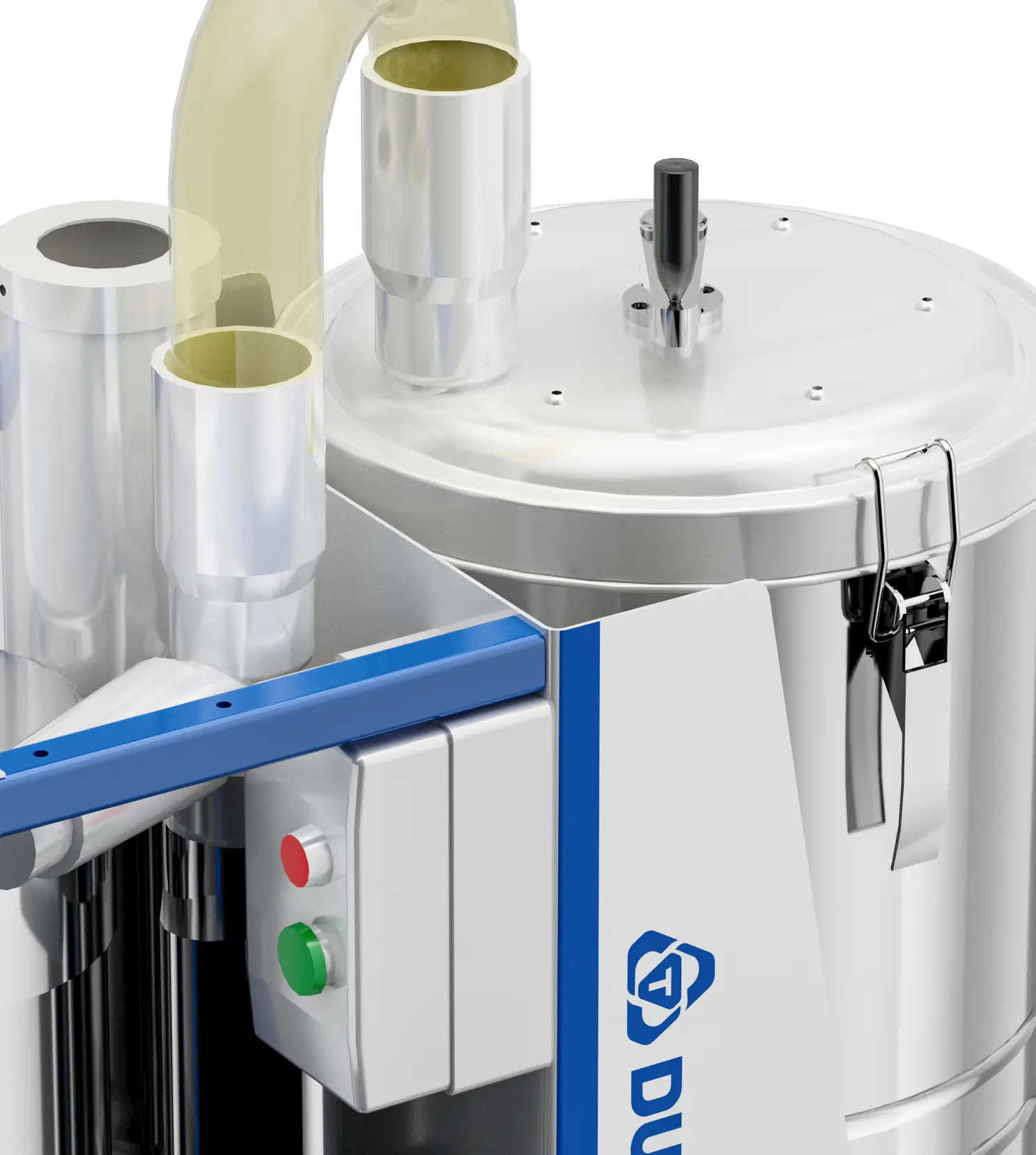

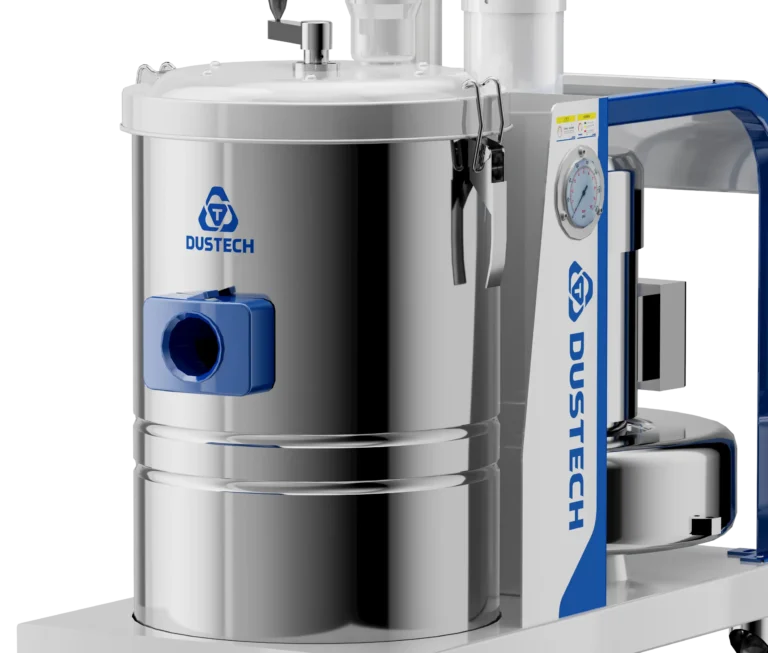

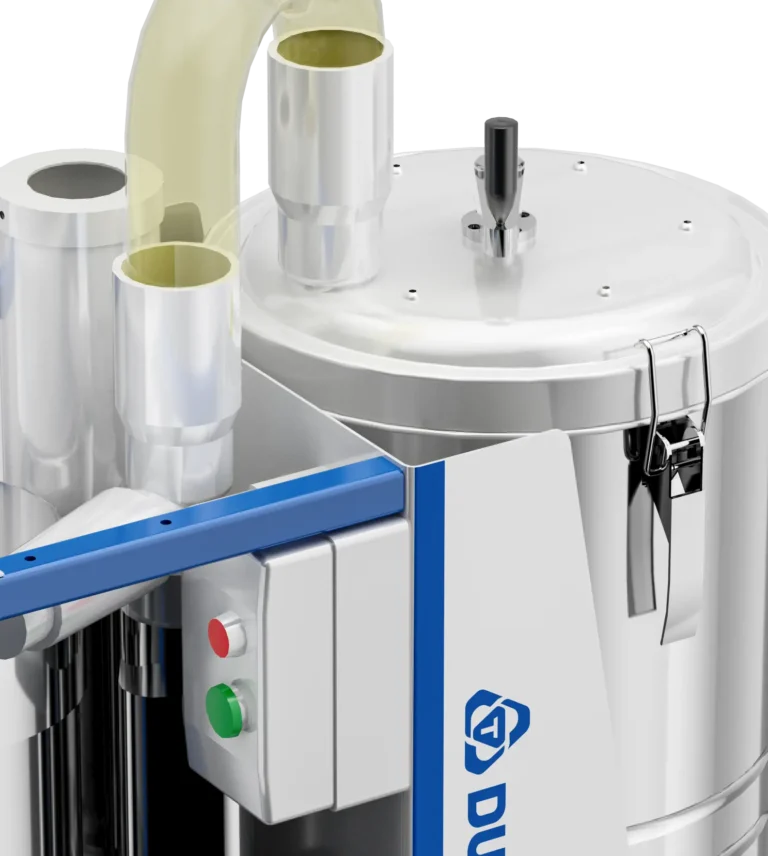

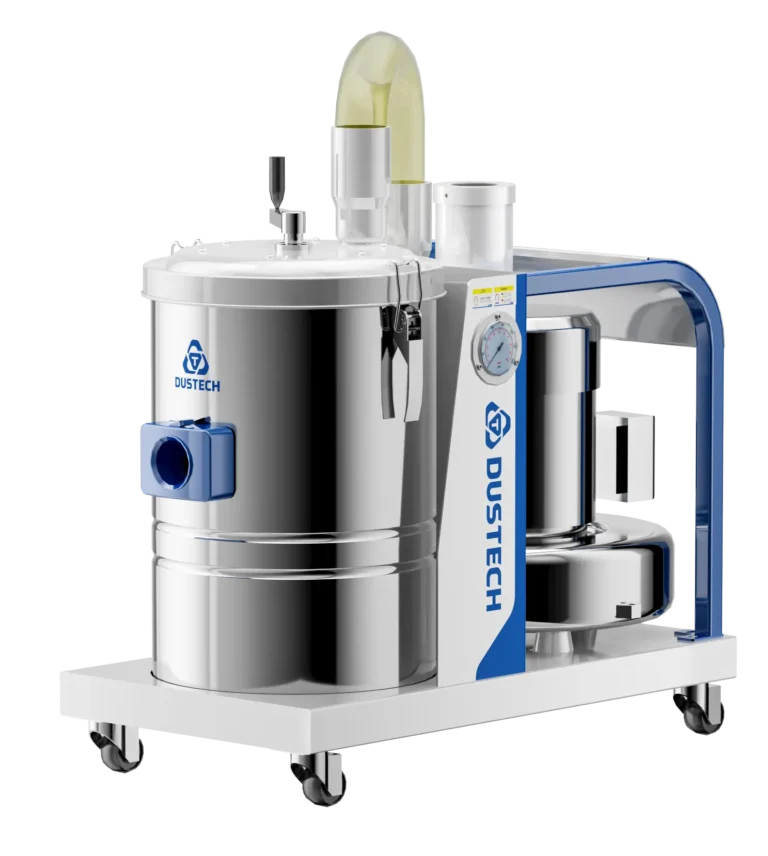

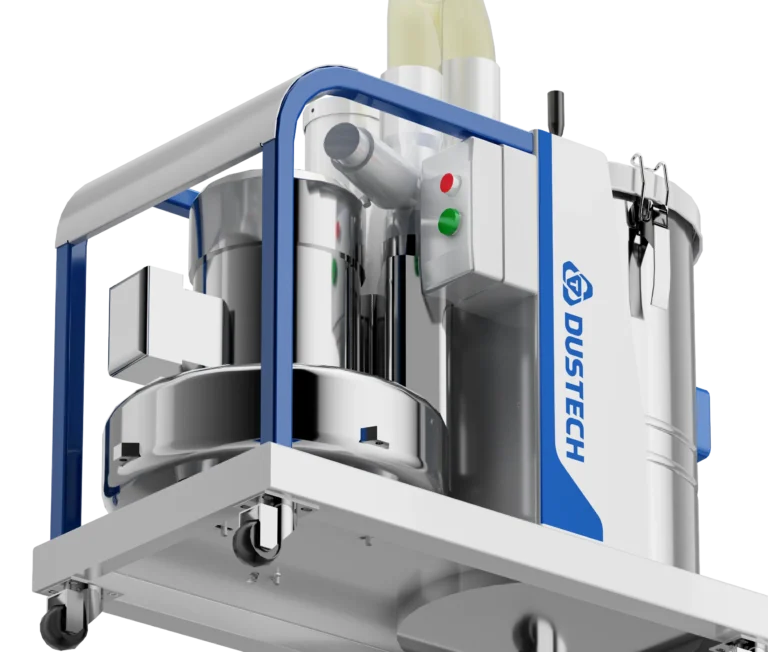

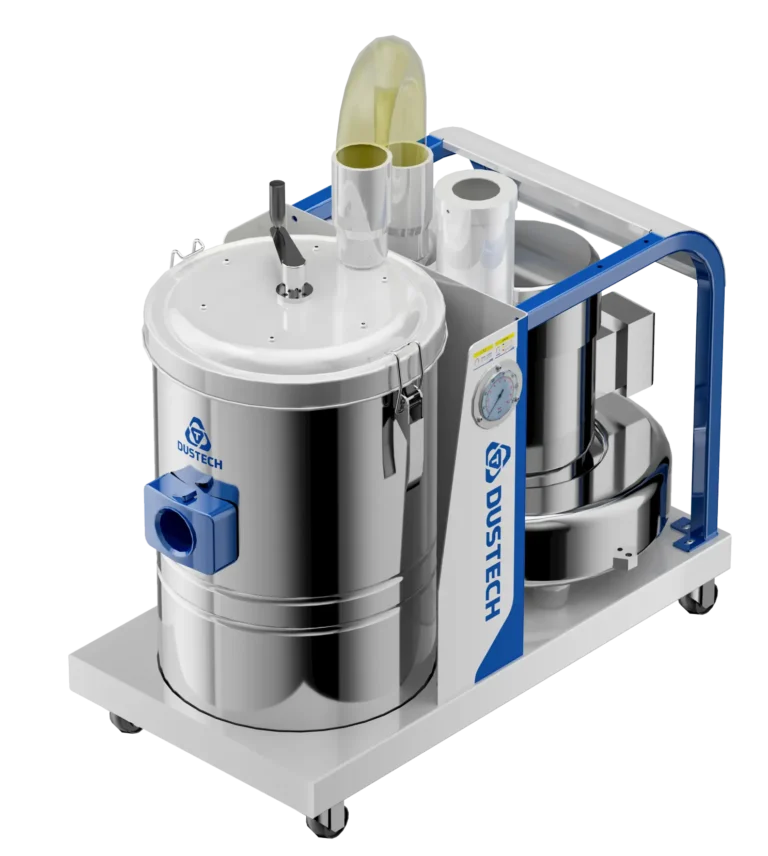

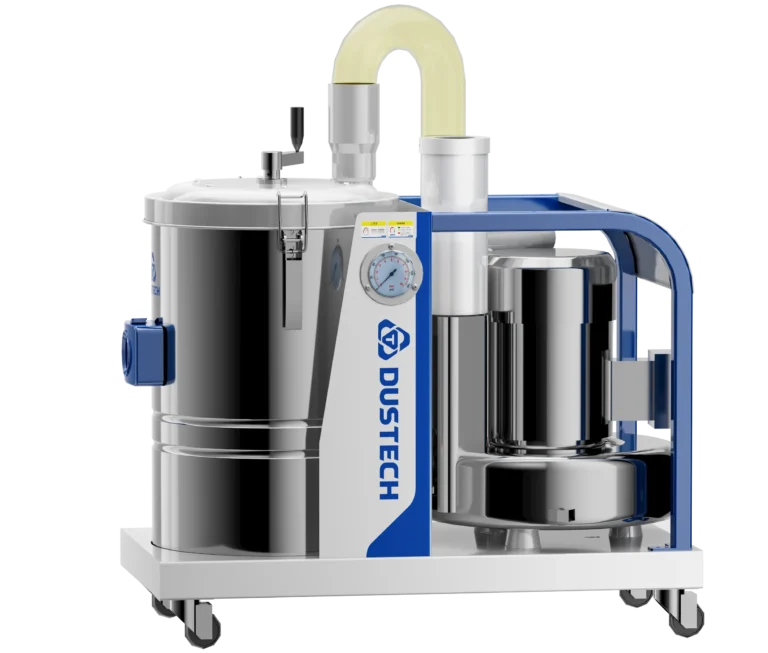

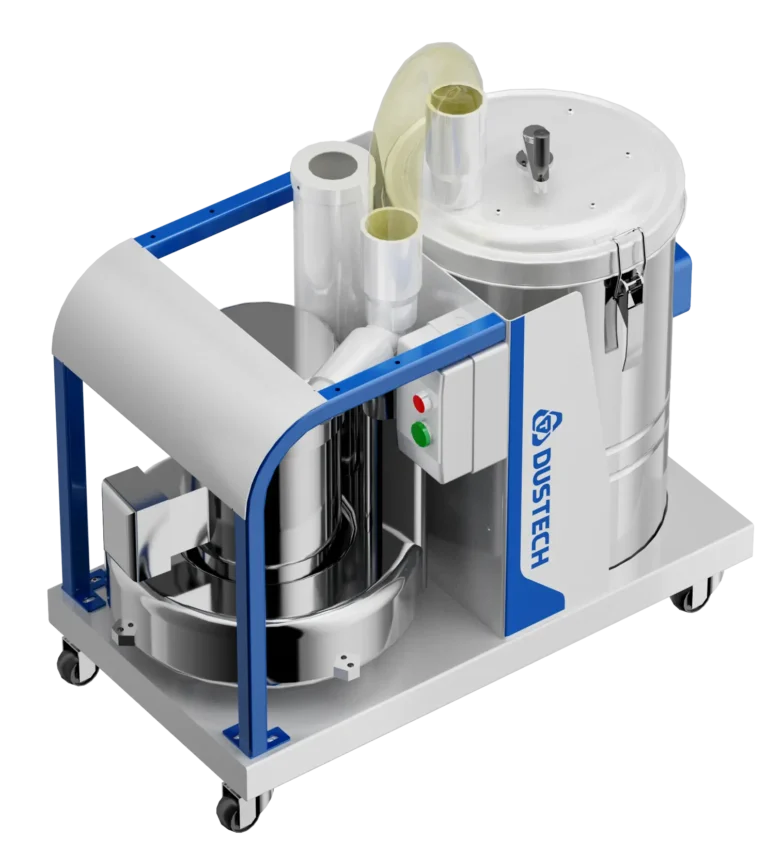

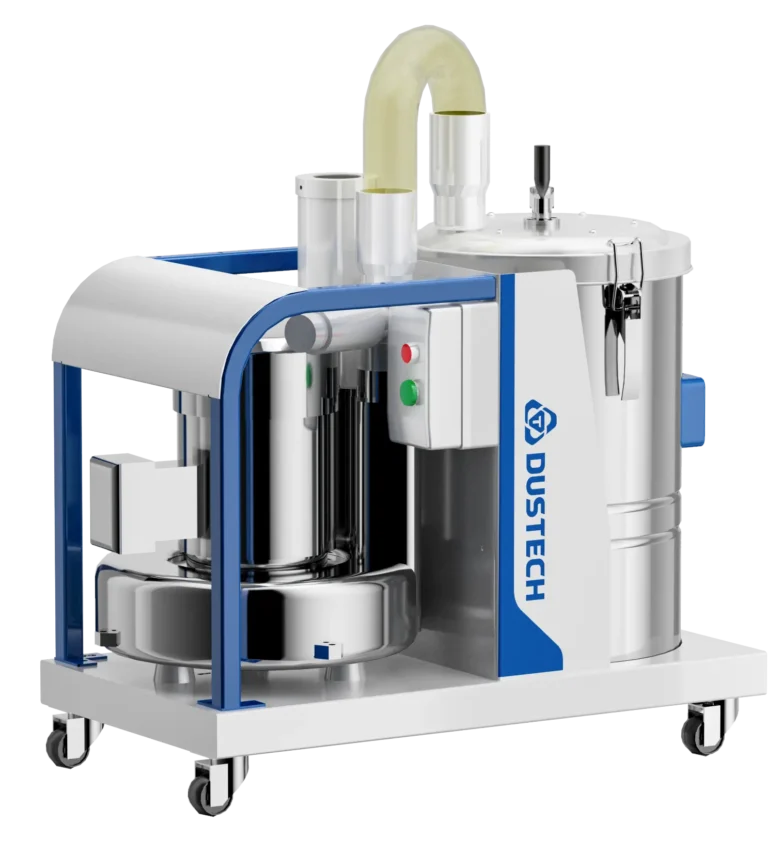

经济紧凑型工业吸尘器

Dust Removal is Crucial for Manufacturing

Ex his quidam aeternitati se commendari posse per statuas aestimantes eas ardenter adfectant quasi plus praemii de figmentis aereis sensu carentibus adepturi, quam ex conscientia honeste recteque factorum, easque auro curant inbracteari, quod Acilio Glabrioni delatum est primo, cum consiliis armisque regem superasset Antiochum. quam autem sit pulchrum exigua haec spernentem et minima ad ascensus verae gloriae tendere longos et arduos, ut memorat vates Ascraeus, Censorius Cato monstravit. qui interrogatus quam ob rem inter multos... statuam non haberet malo inquit ambigere bonos quam ob rem id non meruerim, quam quod est gravius cur inpetraverim mussitare.

Intrinsically Safe Design

The entire system (equipment, motor, and control cabinet) is explosion-proof, eliminating ignition sources at the root.
Optimization for Conductive Dust

Specialized filter media and anti-static measures prevent static electricity accumulation and equipment failure caused by conductive dust.
Compatibility with Dry Environments

The solution considers compatibility with low-humidity dry room environments to avoid compromising battery production quality.

Advantages

Pioneer in Dust Collection & Explosion Protection Solutions

High Vacuum Performance

Delivers high vacuum pressure with both single-phase and three-phase power options.

Compact & Customizable

Compact design with customizable voltage configurations (single-phase up to 2.2 kW).

Easy Maintenance

Integrated filter cleaning system for easy maintenance and extended service life.

型号	DV-EC-75	DV-EC-150	DV-EC-220	DV-EC-300	DV-EC-400
电压 (V/Hz)	380/50
功率 (kW)	0.85	1.6	2.2	3.0	4.0
起动电流 (A)	13	25	30	40	60
额定电流 (A)	2.3	4.3	5.6	7.2	9
最大风量 (m³/h)	145	180	245	285	385
最大负压 (kPa)	16	20	20	20	21
噪音dB (A)	70±2	72±2	74±2	74±2	75±2
吸尘口径 (mm)	Ø40
过滤面积 (m²)	1.1
过滤效率	>99%
收集桶容量 (L)	35	35	35	70	70
尺寸（LxWxH) (mm)	710410750	710410750	710410750	860470790	860470790
重量 (kg)	45	57	57	65	72

Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
