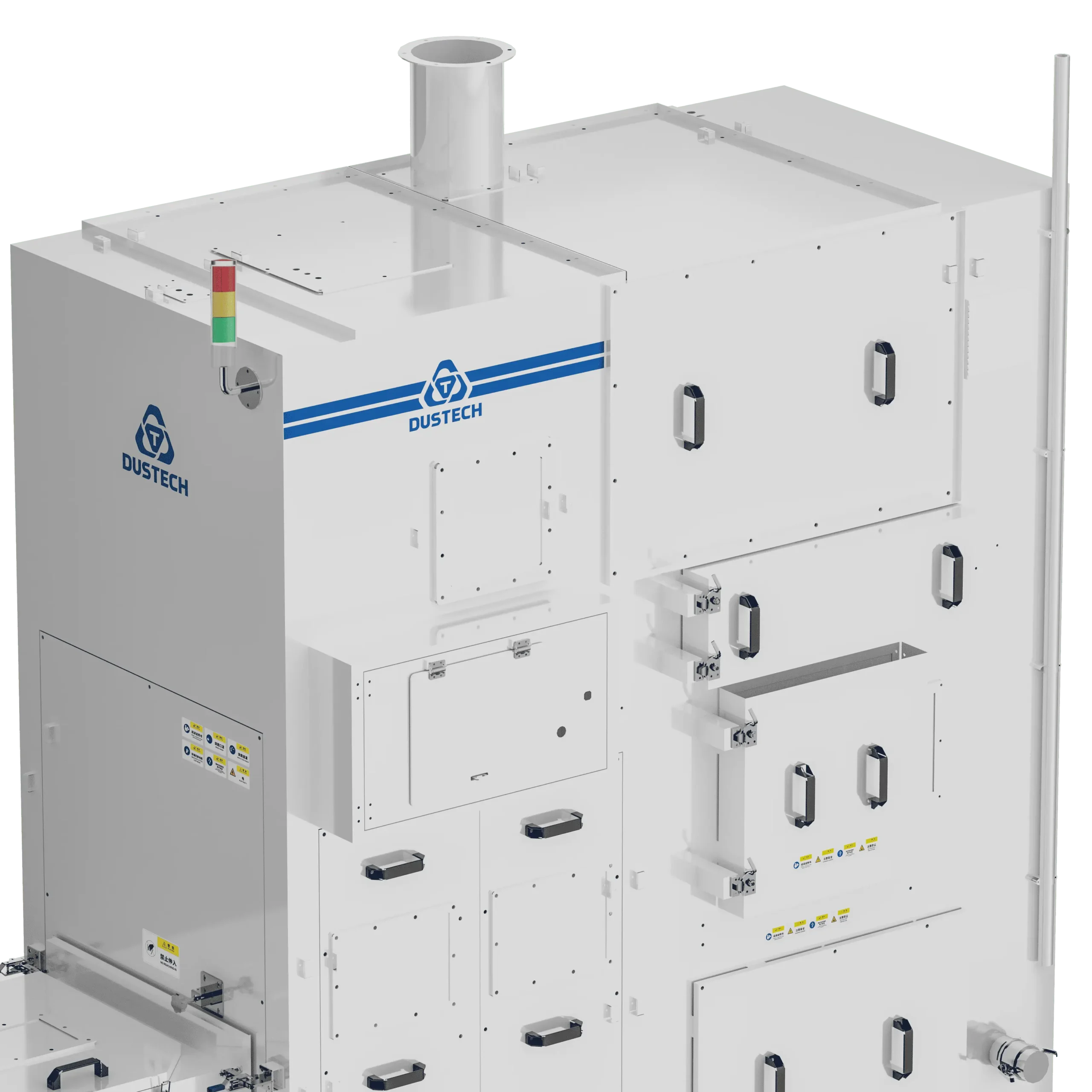

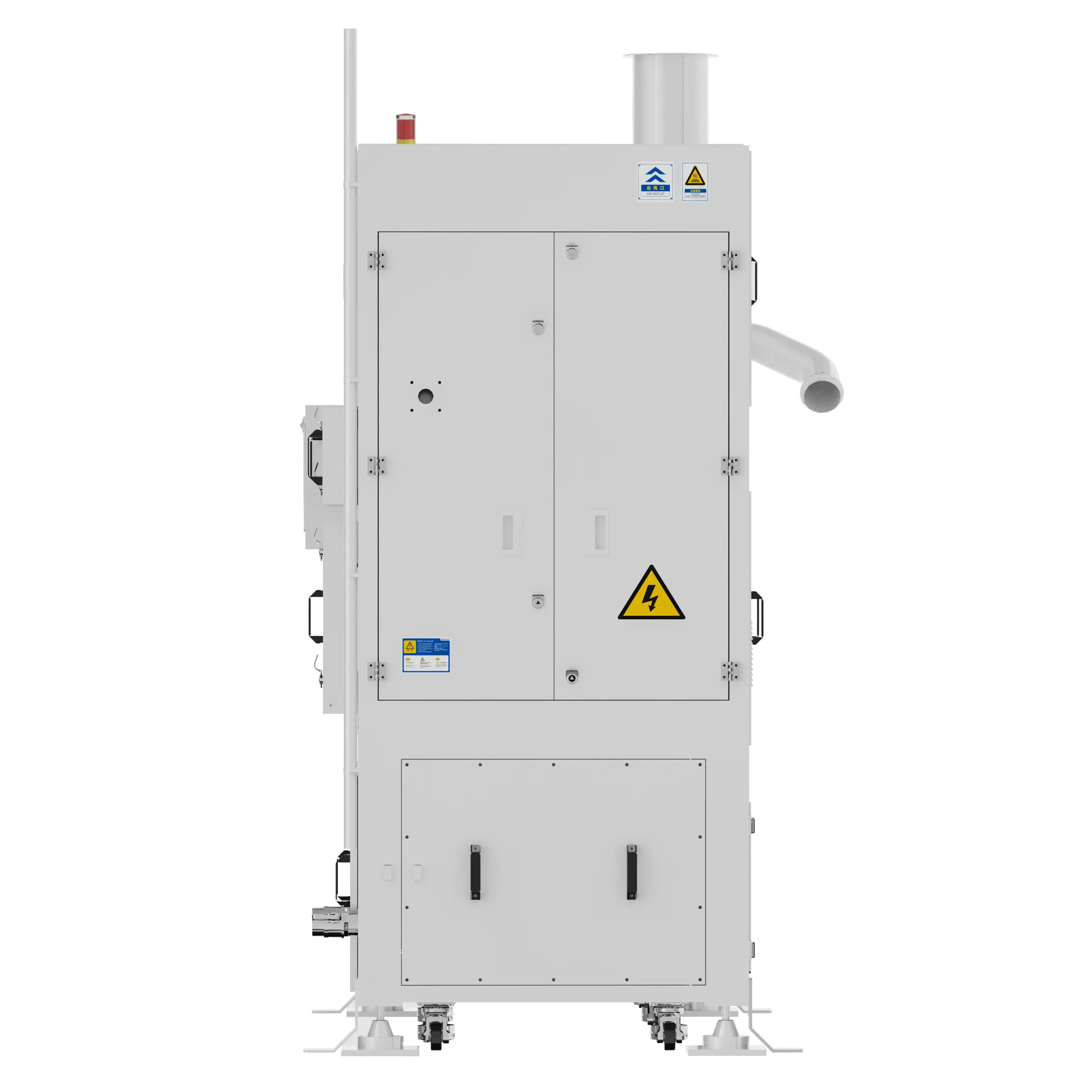

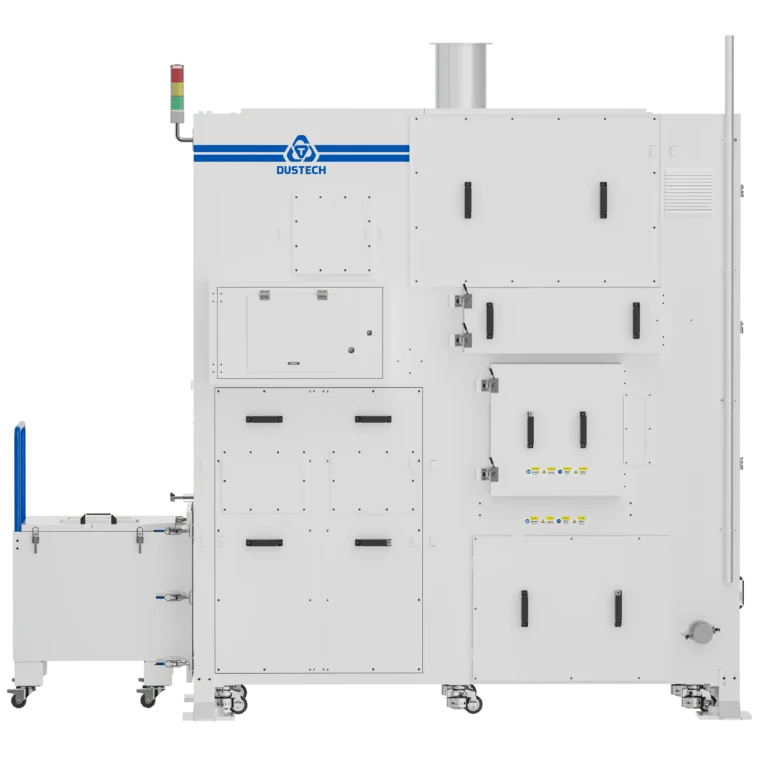

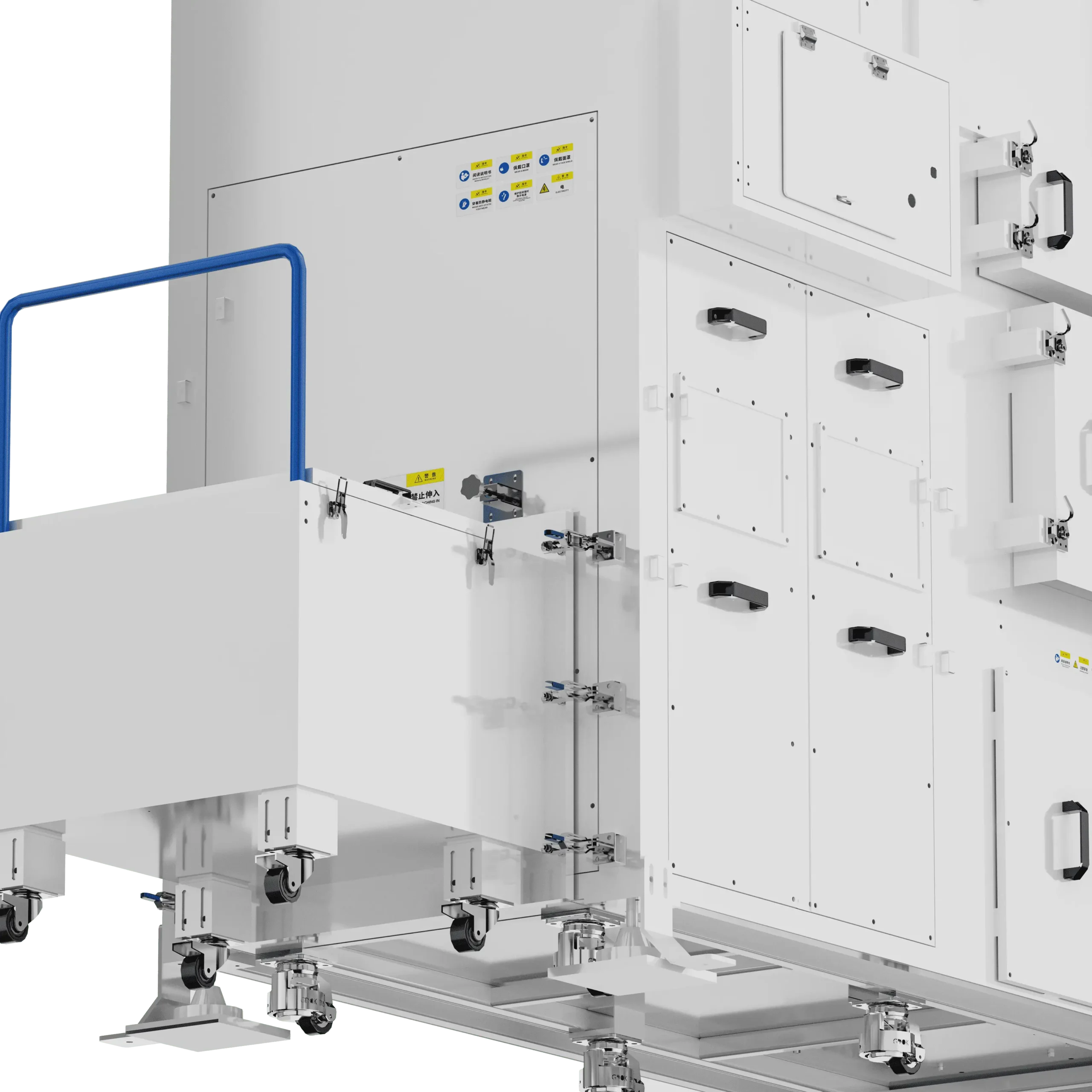

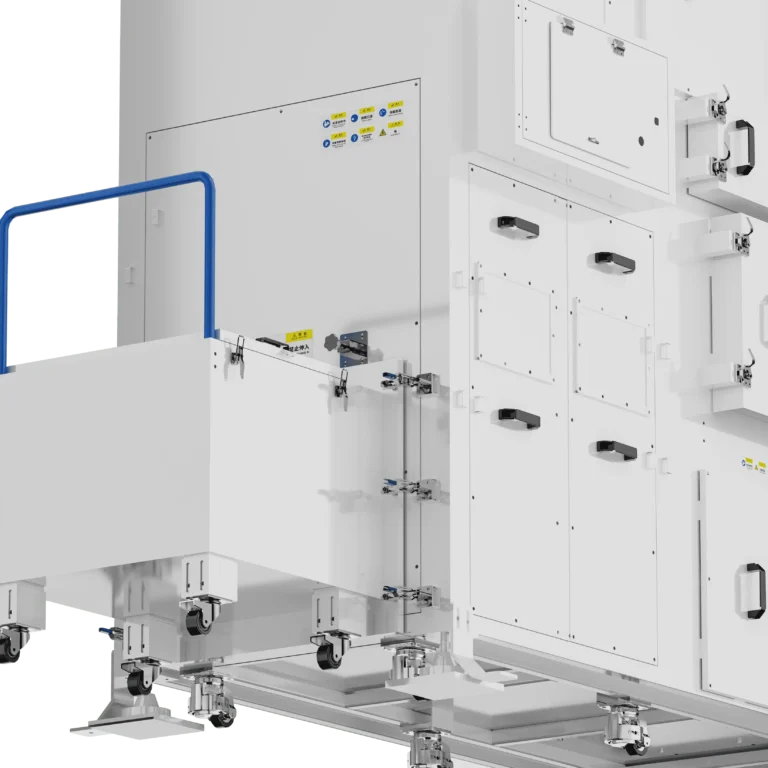

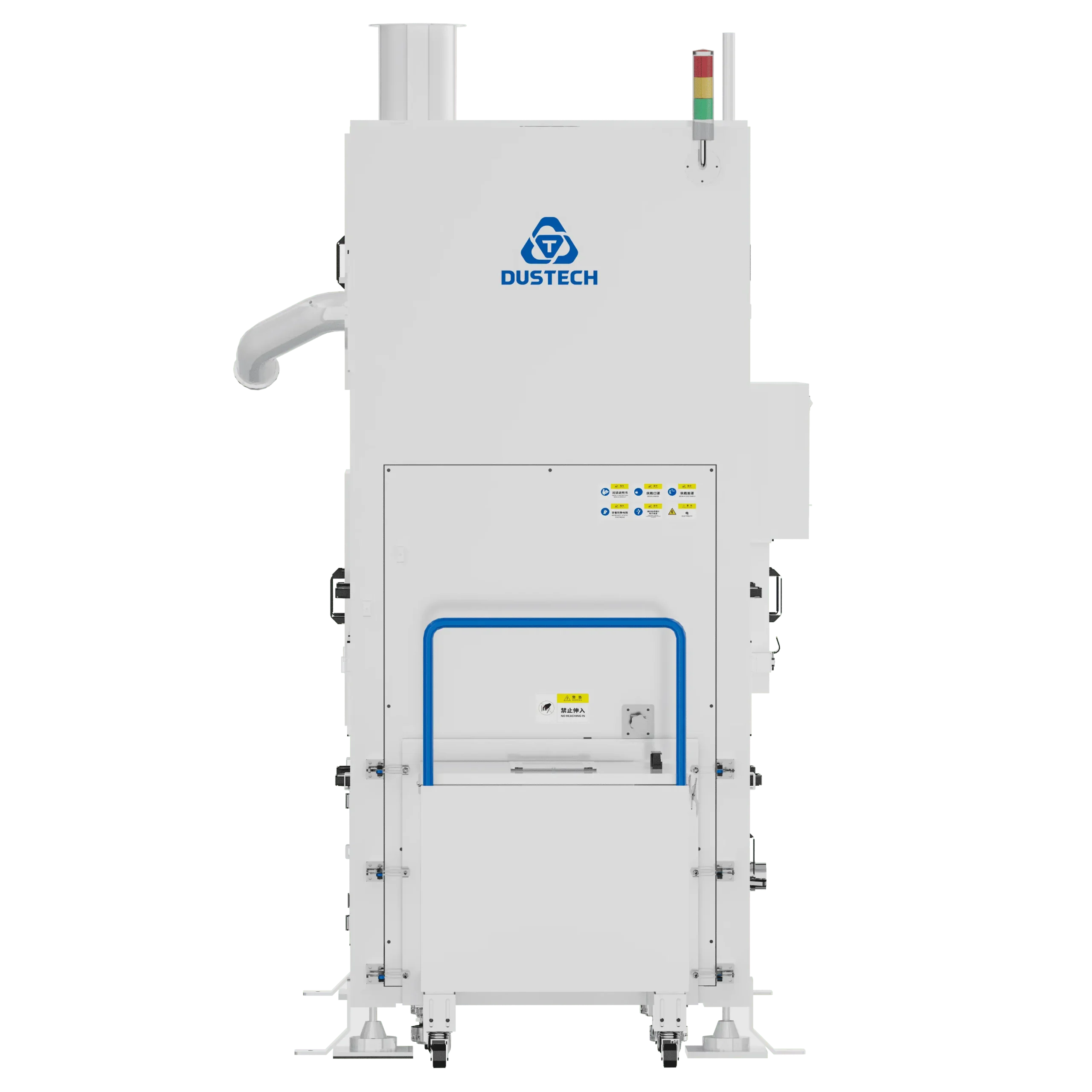

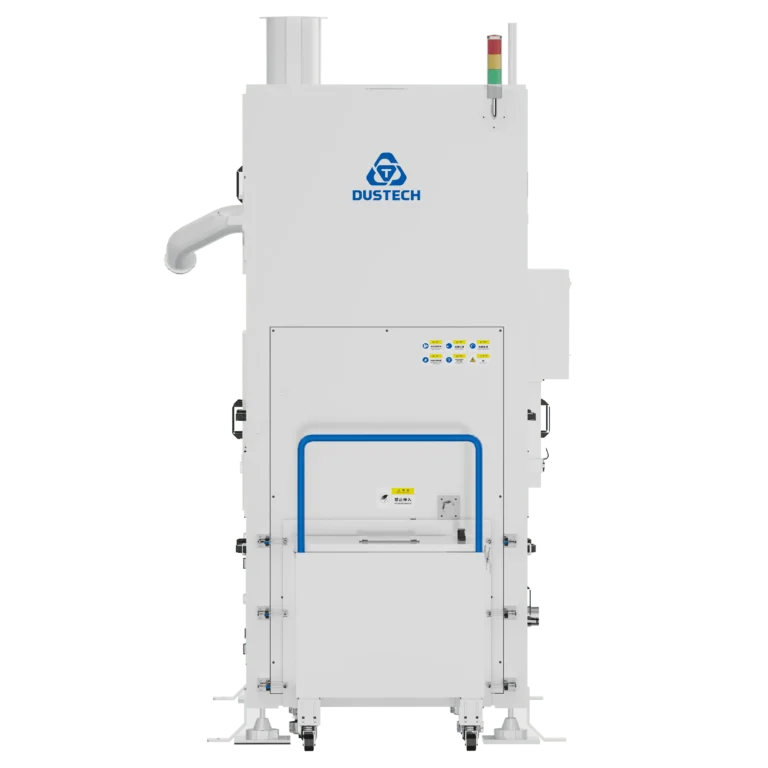

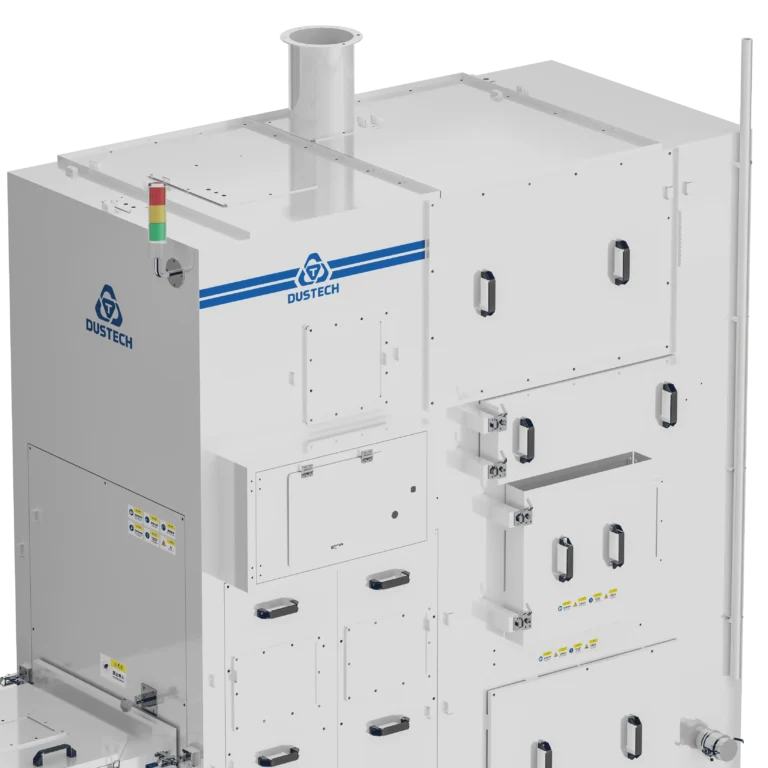

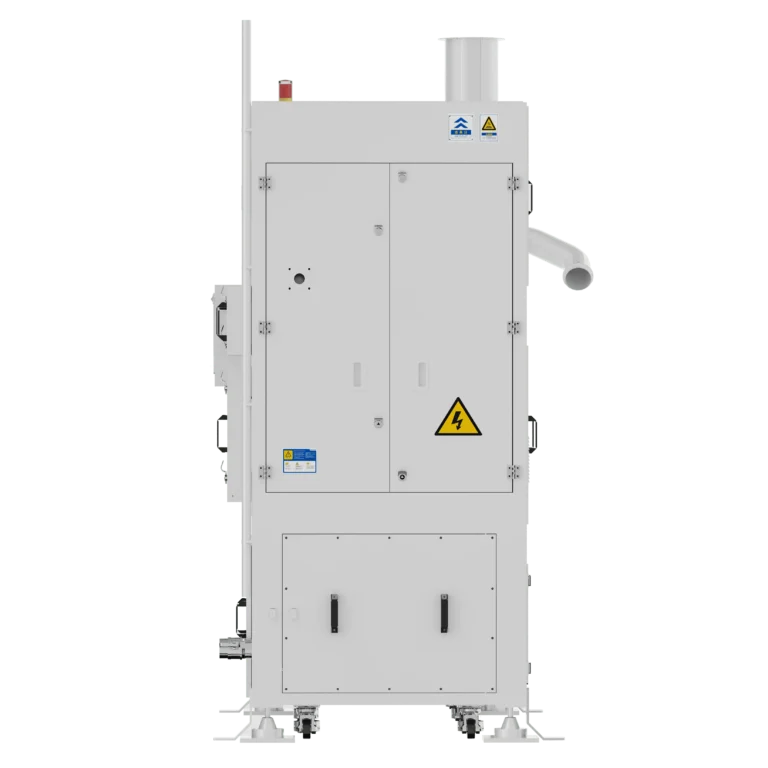

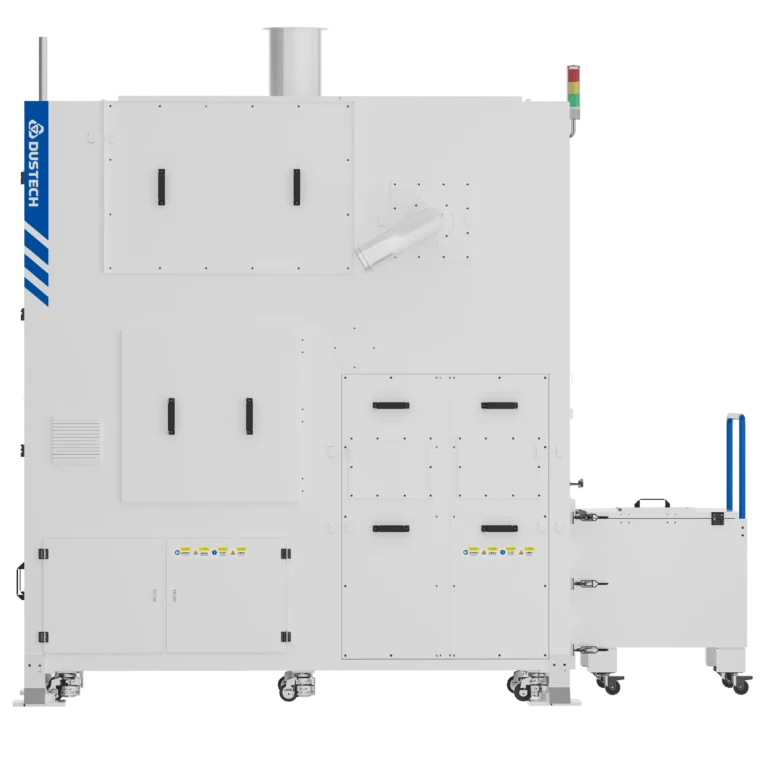

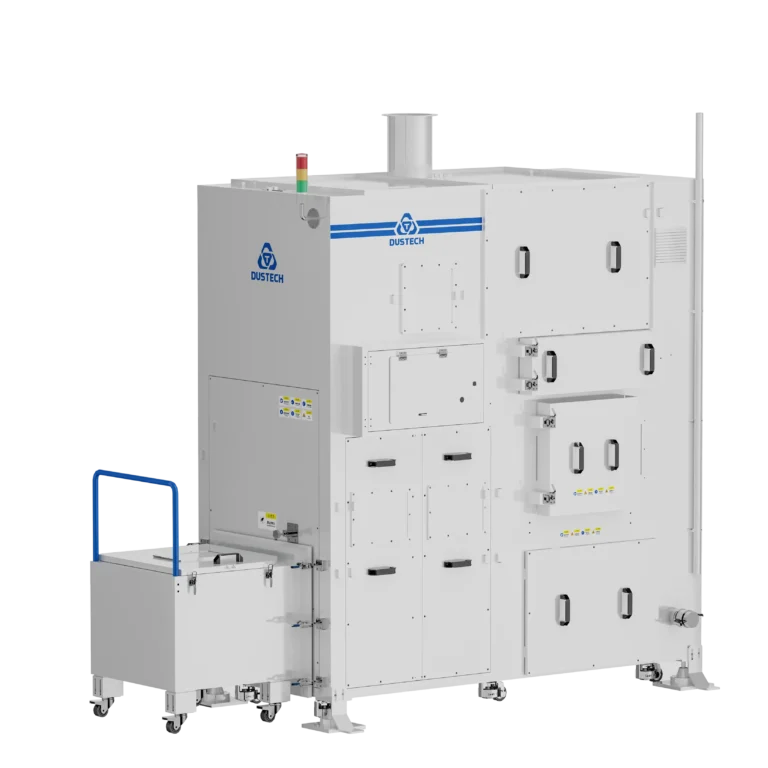

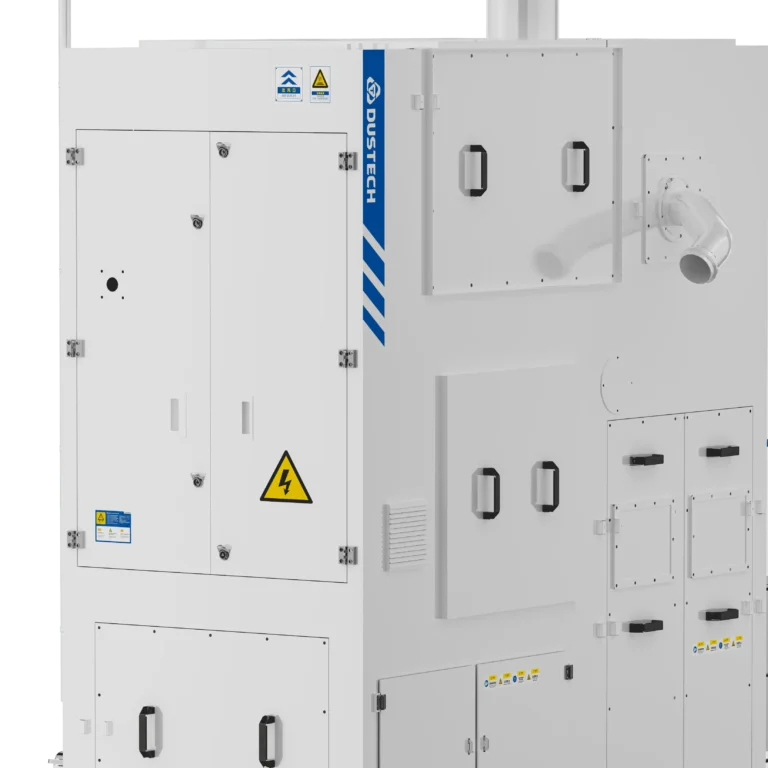

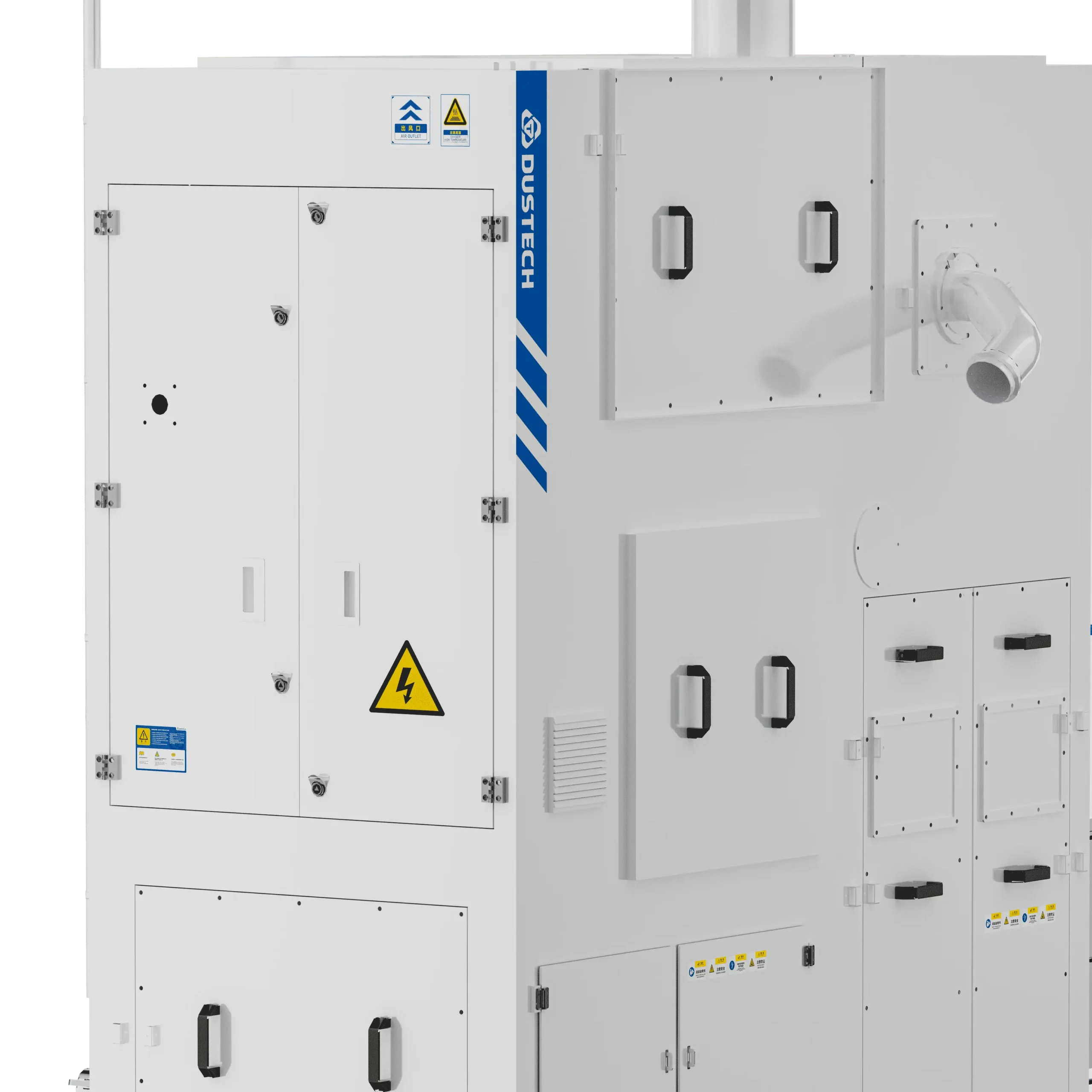

工业金属废料压缩机

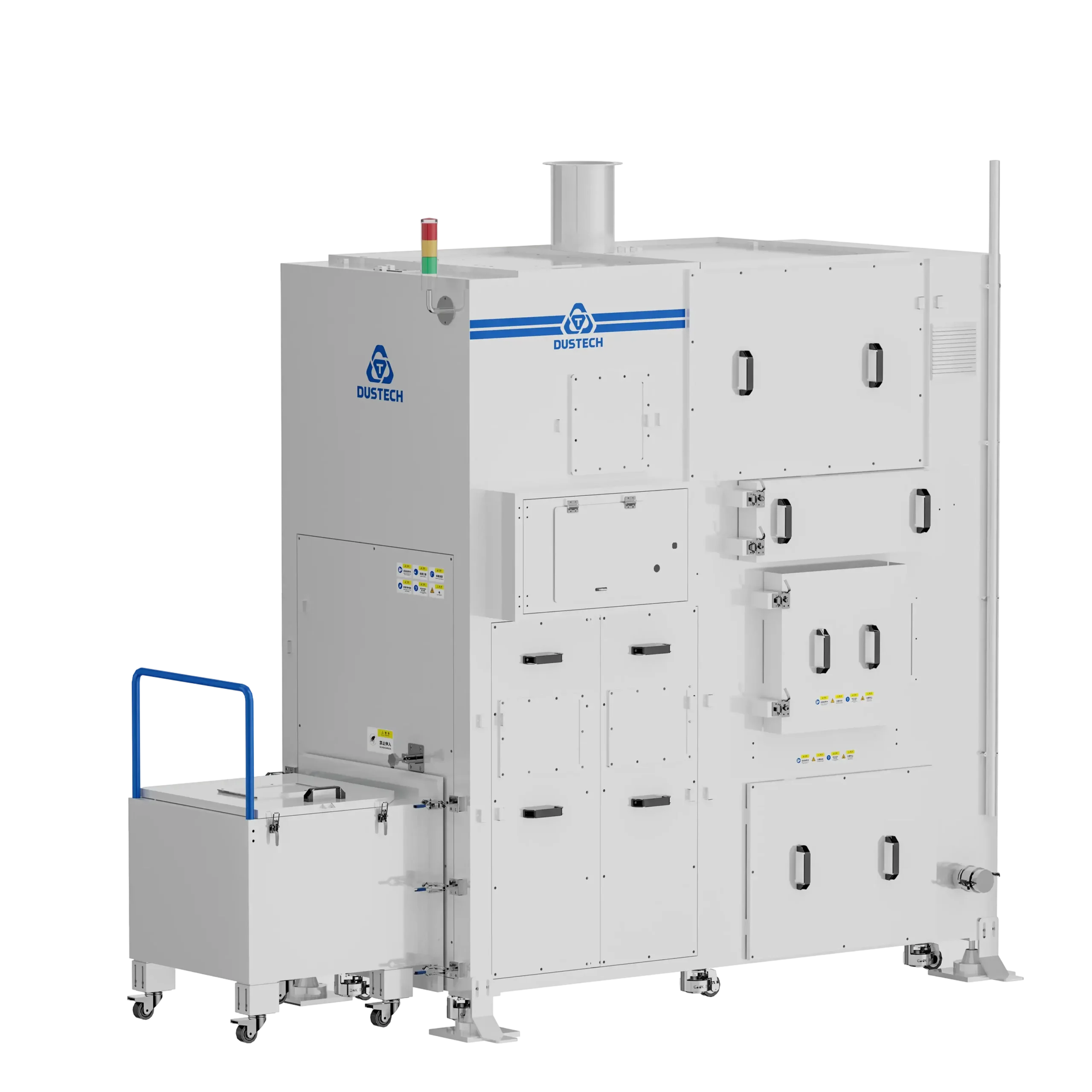

Industrial Metal Scrap Compactor

The DWC-800-BIBO-CE series is a new type of waste electric cylinder compression machine developed by DUSTECH according to the requirements of the lithium battery industry’s pole piece production process. It has the characteristics of intelligent control, convenient collection, and large compression, which greatly reduces the time for manual cleaning and the secondary dust pollution in the workshop during cleaning. The machine is suitable for the pole piece forming machine's pre-slitting and tab forming operations.

Intrinsically Safe Design

The entire system (equipment, motor, and control cabinet) is explosion-proof, eliminating ignition sources at the root.
Optimization for Conductive Dust

Specialized filter media and anti-static measures prevent static electricity accumulation and equipment failure caused by conductive dust.
Compatibility with Dry Environments

The solution considers compatibility with low-humidity dry room environments to avoid compromising battery production quality.
Intrinsically Safe Design

The entire system (equipment, motor, and control cabinet) is explosion-proof, eliminating ignition sources at the root.
Intrinsically Safe Design

The entire system (equipment, motor, and control cabinet) is explosion-proof, eliminating ignition sources at the root.

feature

Take a Closer Look

High Airflow

Equipped with a high-airflow dust extraction fan and large-surface filter cartridges specifically engineered for high-dust environments.
Pulse-Jet Cleaning

Integrated pulse-jet cleaning system with Venturi tubes to optimize reverse airflow efficiency.
Stable Operation

Ensures stable operation with powerful suction, featuring a filter pressure differential alarm for proactive maintenance.
Slide-In Cartridge

Horizontal slide-in cartridge design enables effortless maintenance and cleaning access.

01 / 04

Advantages

Pioneer in Dust Collection & Explosion Protection Solutions

Paphius quin etiam et Cornelius senatores, ambo venenorum artibus pravis se polluisse confessi, eodem pronuntiante

24/7 Online Support

We offer 24/7 online support to assist with all your Power Supply needs.

Reduce High Equipment
Failure Rate

Conductive dust intrusion into precision equipment causes frequent breakdowns and downtime

Environmental Protection And Compliance Pressure

Strict environmental protection regulations and safety production access requirements.

型号	DWC-800-BIBO
电压(V/Hz)	380/50
功率(kW)	7.5
废料参数	料宽:≤50 mm 厚度:≤100 µm 切削速度:<90m/min 数量:<2连续或分段
所需进气速度(m/s)	≥25
噪声等级(dB)	≤ 75
入口直径(mm)	根据客户定制
过滤器滤芯(件)	2
采集间隔(小时)	4-8
尺寸(mm)	L2839W1280H2615
压力(MPa)	0.5-0.6
露点(℃)	-15
阀门材料	不锈钢
单个设备接口数量	2
气管口径	φ12

Case Study

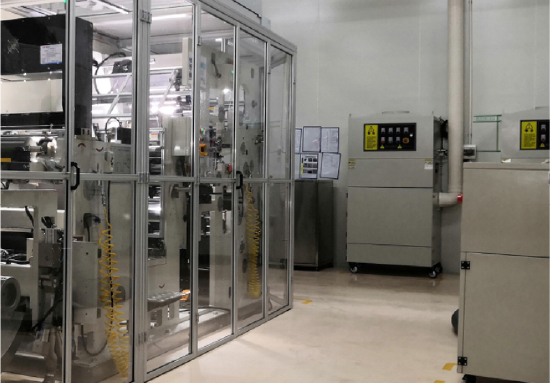

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
Case Study

Dust Removal In Electrode Workshop
- Challenge: Humidity in the workshop must be kept below 1%, and NCM811 cathode material is highly explosive.
- Solution: Anti-static filter cartridges, explosion-proof valves, and a spark detection and extinguishing system are used throughout.
- 48%
  Dust concentration
- 63%
  Safety Incidents
